Compact Type Temperature Sensor
Compact type temperature sensor is easy for installation through thread and good for narrow installation point. It provides an analogue or digital input to a system (indicator, controller or other device) that is used to determine the temperature of a specific process or location. Temperature monitoring is critical in many industrial applications, with PT100 pressure sensor or PT1000 temperature sensor.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

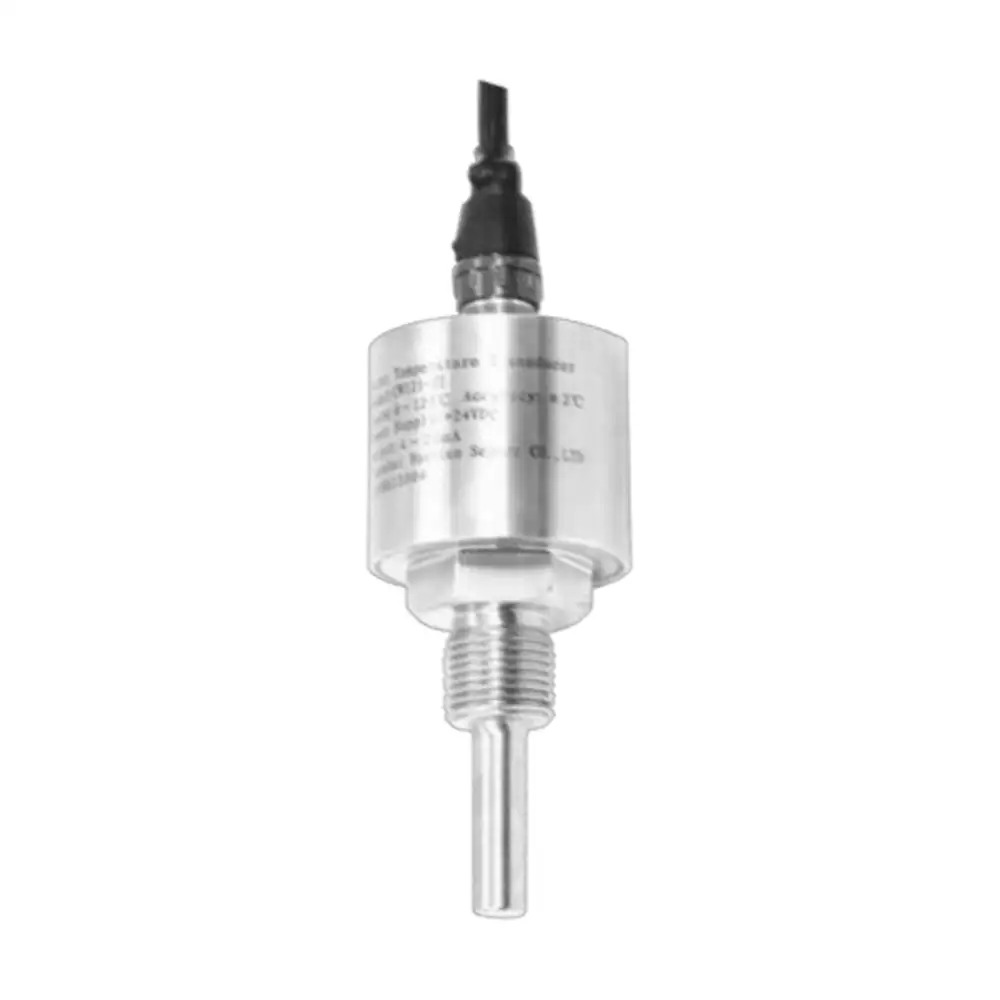

PWT4200 Compact Type Temperature Sensor
Features
- Digital signal output available
- Choices for different structures
- Compatible for most industrial applications
- Customized within 500℃
Application:
- Railway locomotives
- Coal & mine temperature monitoring
- Large workshop ovens temperature measurement
- Chemicals and oilfield
- Pipeline and ventilation system
- Cooling system and heating system
Advantages
- Compact and space-saving
- Easy installation
- Fast response and high accuracy
- Intrinsically explosion proof available
This compact type temperature sensors for industrial applications combine all components into a single, non-dismantable assembly, with their small and lightweight design, cost efficiency, optimal space saving. It has PT100 temperature sensor 4 20ma type, or PT1000 sensor type with transmitter, can customize with ±0.25℃ accuracy.
Technical Parameters
| Model | PWT4200 | ||
| Sensor Type | PT100, PT1000 | ||
| Range | -60℃~+450℃ (optional) | ||
| Accuracy(℃) | A: ±0.25 (customized) | B: ±0.5 | C: ±1.0 |
| Long-term Stability (%FS/year) | ≤0.25 | ≤0.5 | ≤1.0 |
| Working Voltage | 15~30VDC (Calibration at 24VDC) | ||
| Signal Output | 4-20mA 0-10V RS485 IIC | ||
| Working Environmental Temperature | -30~+60℃ | ||
| Response Time | 20s (10%~90%) (typical value) | ||
| Medium Compatible | Liquid compatible with stainless steel SUS304 or SS316L | ||
| Material of Housing | SUS304, SS316L | ||
| Probe Material | SUS304, SS316L | ||
| Protection Level | IP65 | ||
