Resistance Temperature Detector
Resistance temperature Detectors or RTDs are high-accuracy, high-stability imported platinum resistor temperature sensor PT100. Through reasonable process design, full potting of stainless steel housing, and equipped with special temperature cable compensation, the platinum resistor output is more accurate, thus making a temperature sensor in the form of resistance output. It can customize for -60℃~+450℃.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

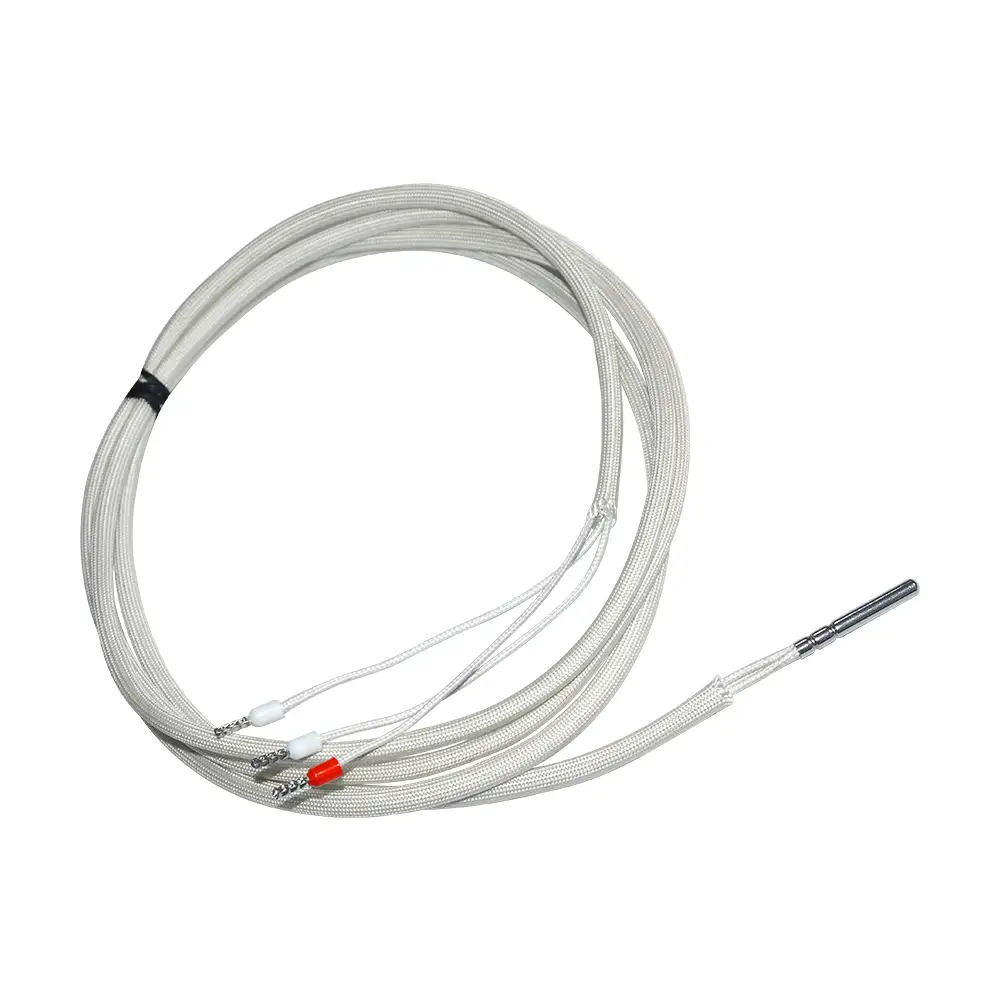

PWT4100 RTD or Resistance Temperature Detector
Features
- Compact size
- Choices for different structures
- Compatible for most industrial applications
- Customized within 500℃
Application:
- Coal & mine temperature monitoring
- Large workshop ovens temperature measurement
- Temperature control of immersible liquids
- Pipeline and ventilation system
- Cooling system and heating system
- Agricultural greenhouse
- HAVC
Advantages
- Fast response and high accuracy
- IP68 for sensor part
- Easy installation
- Cost effective
Resistance temperature detectors (RTDs), also known as electrical resistance thermometers, – are temperature sensors that contain a resistor that changes resistance value as its temperature changes, accurately sense process temperatures with an excellent degree of repeatability. PT100 RTD temperature sensors are widely used in many industrial applications.
Technical Parameters
| Model | PWT4100 |
| Sensor Type | Thin film PT100 resistor |
| Range | -60℃~+450℃ (optional) |
| Accuracy(℃) | A: ±0.2
B: ±0.4 C: ±1.0 |
| Signal Output | Resistance value, three-wire |
| Response Time | 15s |
| Medium Compatible | Liquid compatible with stainless steel SUS304 or SS316L |
| Material of Housing | SUS304, SS316L |
| Probe Material
& Specification |
SUS304, SS316L or nickel plating copper optional
Φ 5 x 50 mm (can be customized) |
| Lead Wire | PT100 compensation wire |
| Protection Level | IP68 ( Wiring part IP66) |
| Insulation resistance | ≥100m Ω (500VDC) |
