Submersible Level Transmitter

Pokcenser high accuracy submersible Level Sensor also called hydrostatic pressure level sensor with an enclosure of 27mm, 19mm and 16mm in diameter makes it ideal for level monitoring instruments in well, borehole and tanks applications. Constructed for years of trouble free service, it applies imported 316L stainless steel isolation diaphragm diffusion silicon pressure sensor core and 316L SS body&nose cap as robust. Precision ±0.10%, ±0.25% or ±0.50% of full scale accuracy output. Lightning and surge protection is included to stand up in harsh applications. Special cable for air-venting conduit with a maintenance-free filter preventing particulate or water droplets from entering the transmitter, ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

PWP416 Submersible Level Transmitter for Wastewater & Slurry

Features

  • Flush diaphragm design anti-clogging
  • Double flange structure increases dead weight
  • Fully stainless steelmaterial construction
  • Wide measuring range up to 300m
  • IP68 water-proof

Application:

  • Wastewater, sewage
  • Sludge, slurry, muddy liquids
  • Dam, river, reservoir, pond, well, channel
  • Coal & Mine industry
  • City water supply and drainage
  • Lift station and pumping stations monitoring
  • Septic level monitor

Advantages

  • Added weight prevents movement of the transmitter
  • Protection from physical damage and turbulence
  • Constructed for years of trouble free service with welded stainless steel body and flange

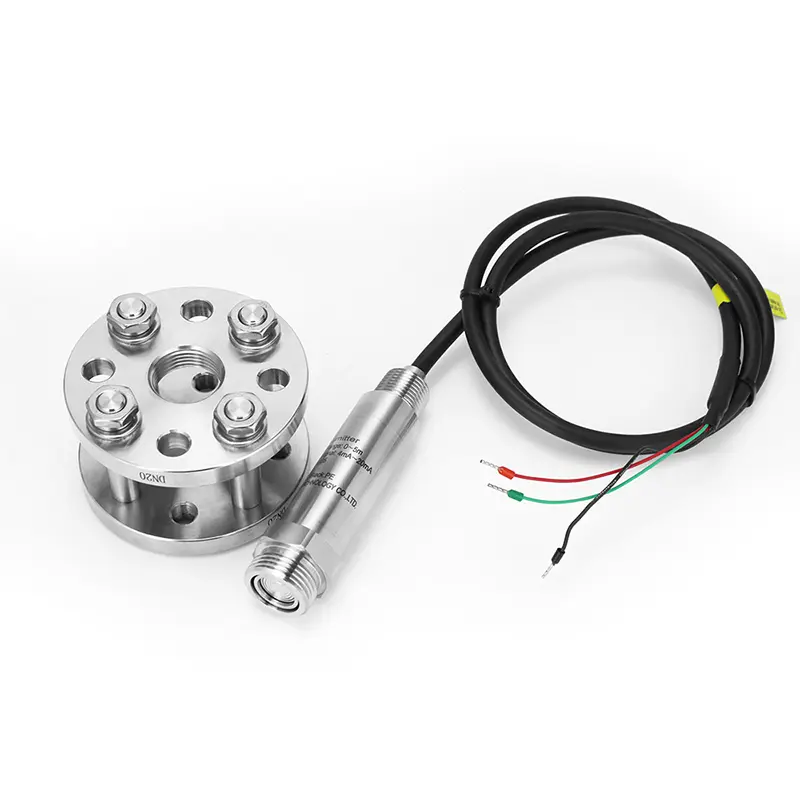

  • Dettachable flange for the convenience of cleaning
  • Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection

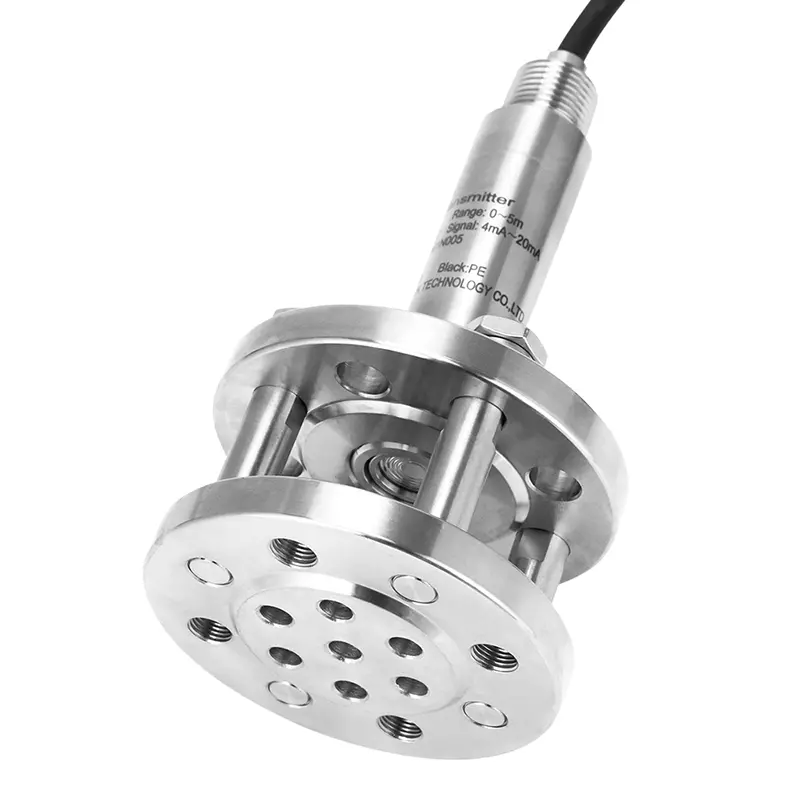

The submersible level transmitter with anti-clogging special structure. Double flange design protect the sensor from damaged by stones or obstacles in the water. The open distance between two flanges allows liquids flowing normally and at the same time can keep 316L flush diaphragm to be away from sands and mud. All those features make it an excellent choice industrial underwater pressure sensor for wastewater, slurry, sewage, muddy, storm water applications.

Resources

Datasheet

File Name

Time

Type

Download

PWP416 Submersible Level Transmitter for Wastewater & Slurry

May 05, 2025

PDF

Technical Parameters

Model PWP416
Pressure Level Range 0m~0.5m…300m H2O/0-0.05 bar…30bar
Accuracy ±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output 4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART
Power Supply 3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time ≤3ms
Medium Compatible Liquid compatible with SS304 or SS316L
Long-term Stability ≤0.5%FS/year (for 0.5%FS accuracy)
Zero Temp. Drift ≤0.05%FS/℃(for 0.5%FS accuracy)
Compensation Temp. 0℃~+50℃(typical), -10℃~+60℃(optional)
Working Temp. Media -30℃~+65℃, environmental -40℃~+70℃
Storage Temp. -40℃~+70℃
IP Rating IP68
Cable Material PE, PU or FEP
