Submersible Level Transmitter

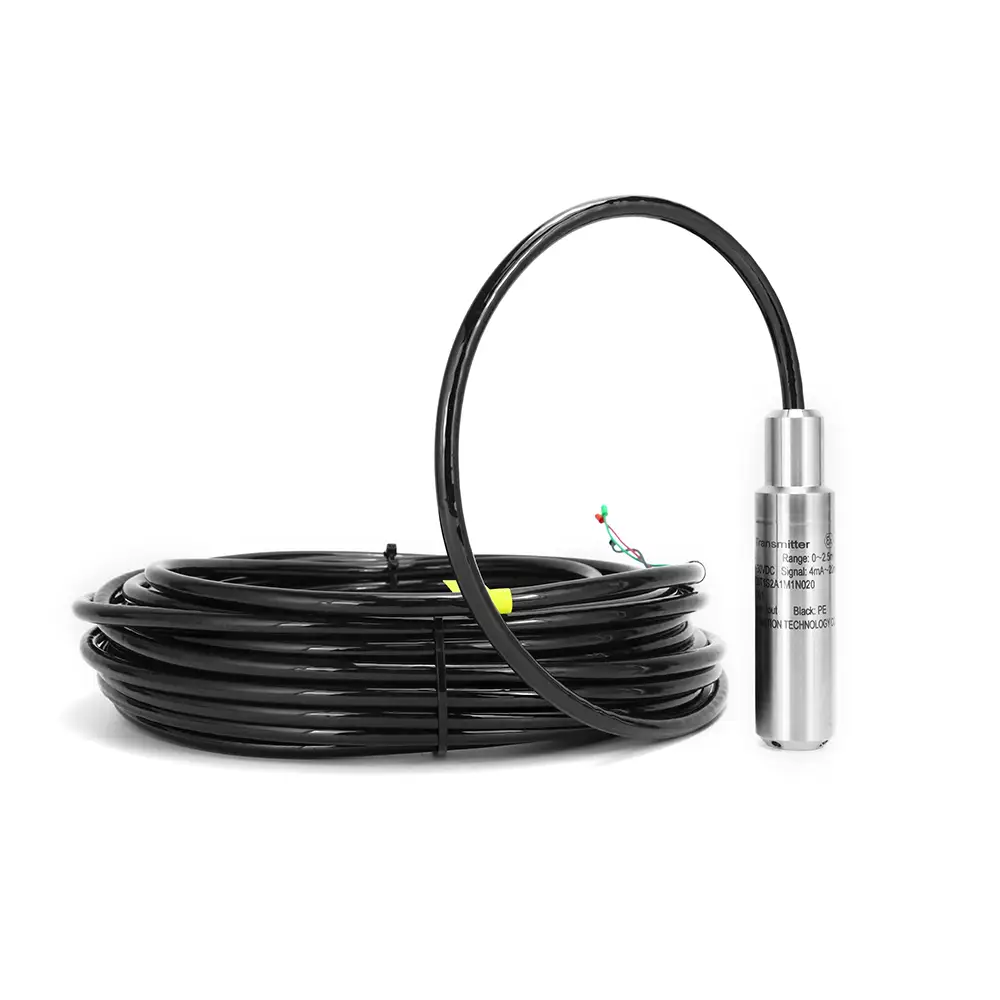

Pokcenser high accuracy submersible Level Sensor also called hydrostatic pressure level sensor with an enclosure of 27mm, 19mm and 16mm in diameter makes it ideal for level monitoring instruments in well, borehole and tanks applications. Constructed for years of trouble free service, it applies imported 316L stainless steel isolation diaphragm diffusion silicon pressure sensor core and 316L SS body&nose cap as robust. Precision ±0.10%, ±0.25% or ±0.50% of full scale accuracy output. Lightning and surge protection is included to stand up in harsh applications. Special cable for air-venting conduit with a maintenance-free filter preventing particulate or water droplets from entering the transmitter, ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

PWP412-F Submersible Fuel Level Sensor

Features

  • High accuracy of±5%FS, ±0.25%FS, ±0.1%FS
  • ATEX, intrinsically safe explosion-proof
  • Level&Temperature integral measurement
  • IP68 water-proof

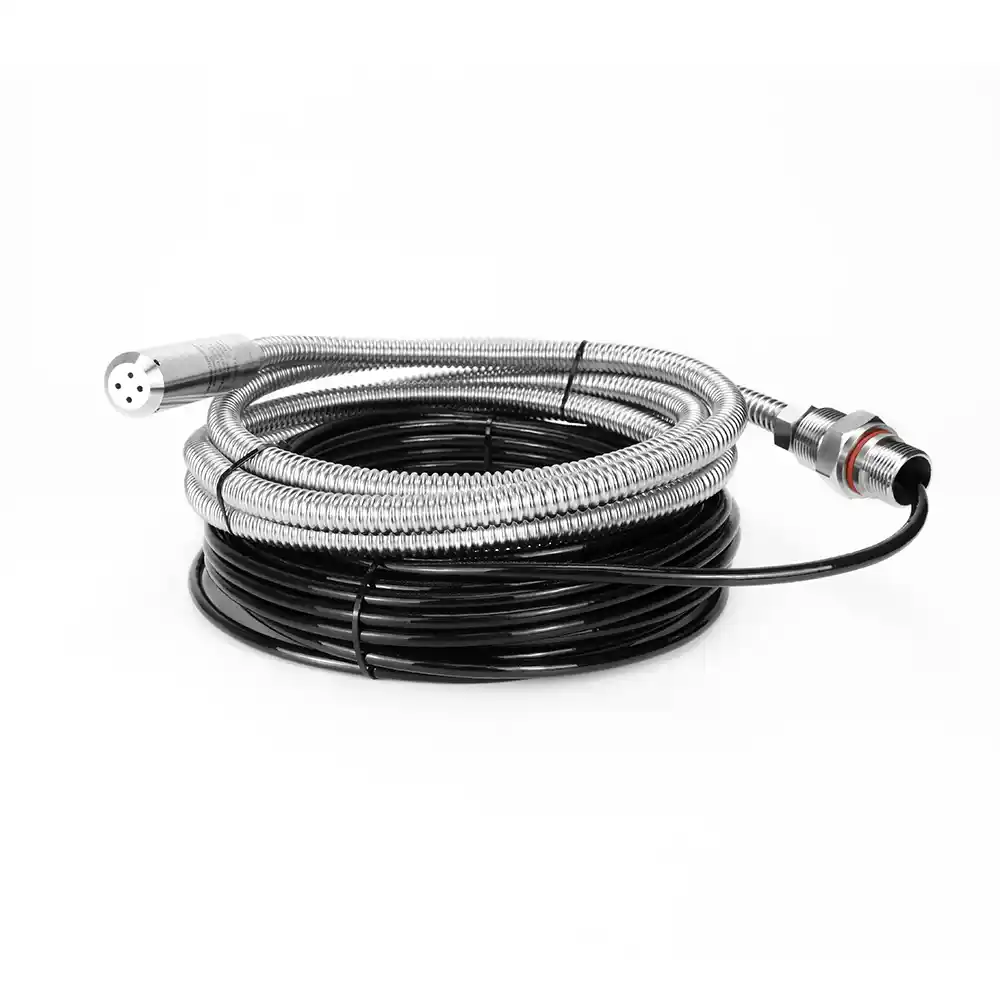

  • Polyurethane cable for diesel, PUR cable covered by corrugated SUS304 tube for gasoline

Application:

  • Monitoring of diesel & gasoline fuel storage tanks
  • Chemical and Petrochemical industry
  • Level measurement in fuel trucks
  • Fuel reservoir
  • Liquids measurement in tanks and vessels
  • Level measurement in oil tanks
  • Calibration instrument

Advantages

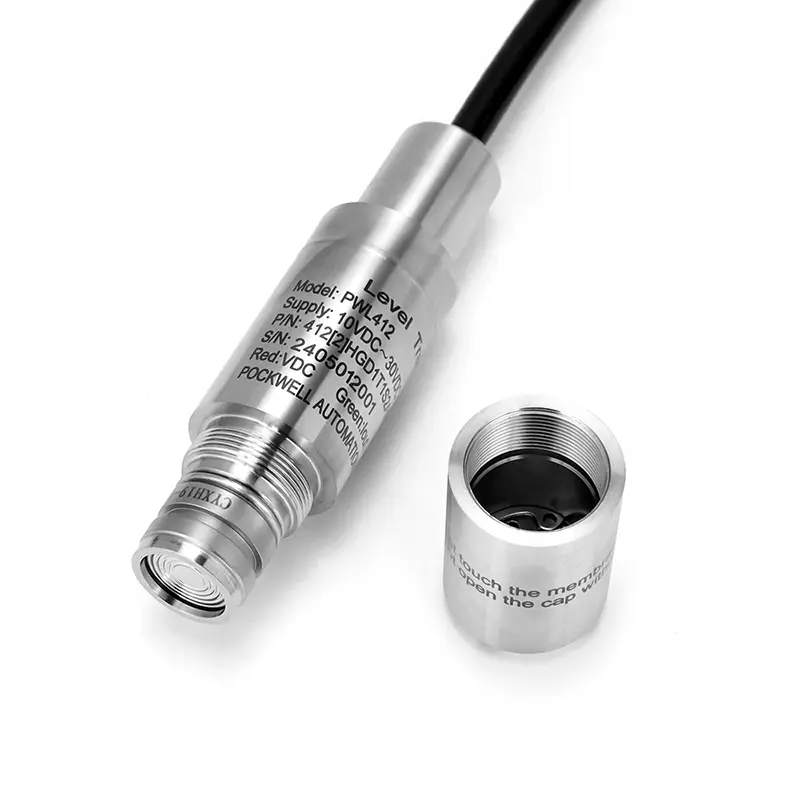

  • Unique filter design in the nose cap for accurate measurement from impurity and particles
  • Reliable, precise measurement, long-term stability
  • Cost-effective way for product and shipping freight
  • Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection
  • CE, and ATEX approved

Submersible Fuel Level Sensor is a low-cost liquid level sensor for fuel tanks. It uses a high-performance diffused silicon piozoresistive pressure sensor as sensing element, accurately measure the static pressure of the liquid that is proportional to the liquid level depth. It can be integral with a temperature sensor for both continuous level and temperature measurement for fuel tanks.

Resources

Datasheet

File Name

Time

Type

Download

PWP412-F Submersible Fuel Level Sensor

May 05, 2025

PDF

Technical Parameters

Model PWP412-F
Pressure Level Range 0m~0.5m…30m Fuel/0-0.05 bar…3bar
Electrical Connection Directly cable outlet
Accuracy ±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output 4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART
Power Supply 3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time ≤3ms
Medium Compatible Liquid compatible with SUS304
Long-term Stability ≤0.5%FS/year (for 0.5%FS accuracy)
Zero Temp. Drift ≤0.05%FS/℃(for 0.5%FS accuracy)
Compensation Temp. 0℃~+50℃(typical), -10℃~+60℃(optional)
Working Temp. Media -30℃~+65℃, environmental -40℃~+70℃
Storage Temp. -40℃~+70℃
Explosion Proof Exia II CT6
IP Rating IP68
Cable Material PU, PTFE or FEP
