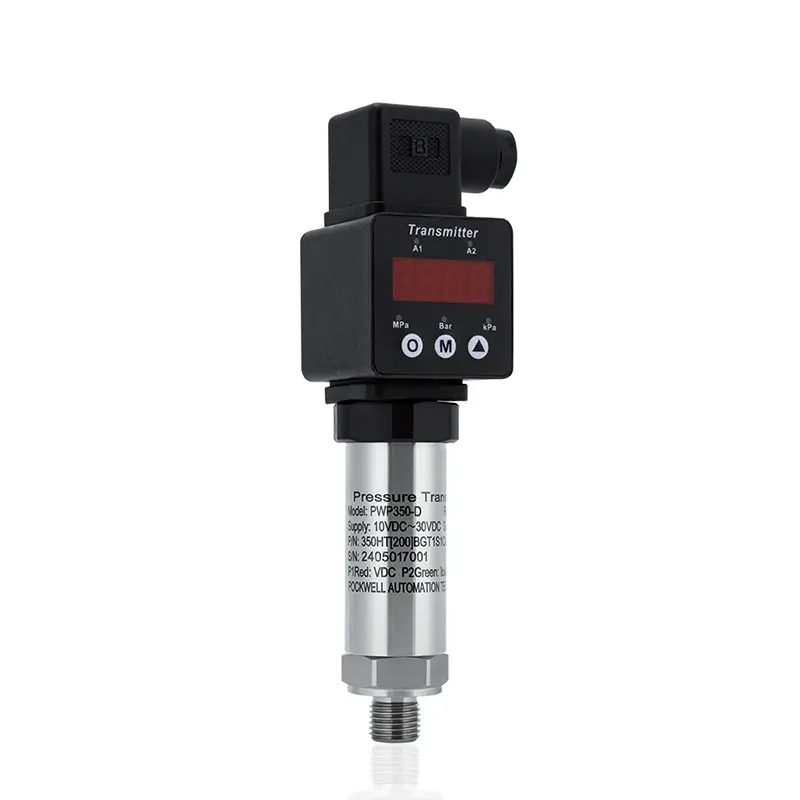

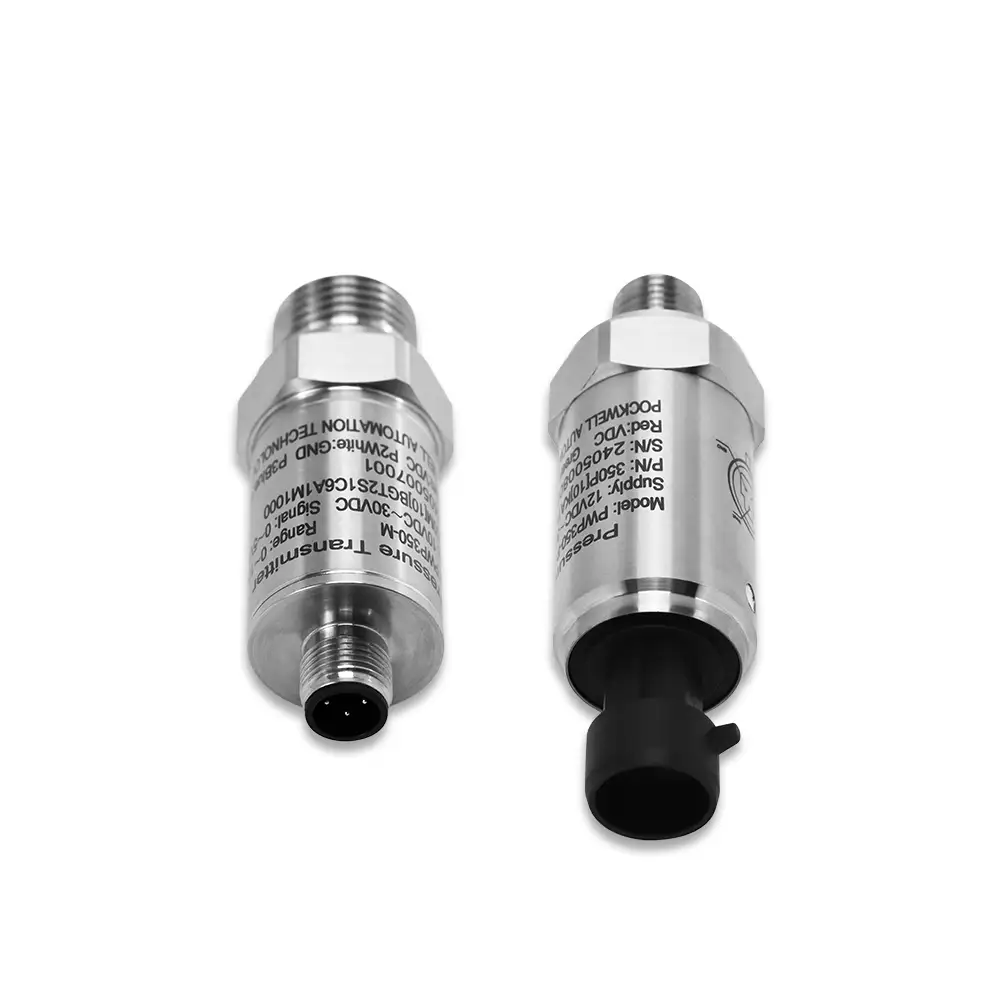

PWP350 Universal Industrial Pressure Sensor
Features
- High accuracy: 0.5%F.S., 0.25%F.S. and 0.1%F.S.
- SUS304 housing and 316L diaphragm: Robust, anti-corrosion
- 3ms fast response
- Large measuring range: Max 100MPa
- PVE plastic material connector: Flame retardant, pressure resistant, anti-corrosive
- Signal output choices: 4~20mA, 0~5VDC, 0~10VDC, I2C, RS485
Application:
- Water treatment
- Coal & mine
- Chemical industry
- Petroleum
- Pumps and compressors
- Agricultural irrigation
- Shipbuilding
Advantages
- Suits almost all industrial applications
- Strongly compatible with air, oil, hydraulic and water pressure
- Equipped with 3 intelligent protection
- High stability, low drift
- Variety choices for structure, outputs, electrical connectors and pressure ports.
The industrial pressure sensor applies imported high quality piezoresistive pressure sensor chip with a fully welded stainless steel housing. Equipped with 3 intelligent protection: Over-voltage, over-current and reverse wiring protection. Strongly compatible with air, oil, hydraulic and water pressure. A perfect air pressure transducer for industrial applications.
Technical Parameters
| Model | PWP350 |
| Pressure Type | Relative (gauge) /Absolute pressure/Sealed gauge pressure |
| Pressure Range | -0.1MPa … 0kPa~10kPa …100MPa |
| Safe Overload | ≤200%FS(<10MPa); ≤150%FS(≥10MPa) |
| Burst Pressure | 300%FS |
| Electrical Connection
& IP Rating |

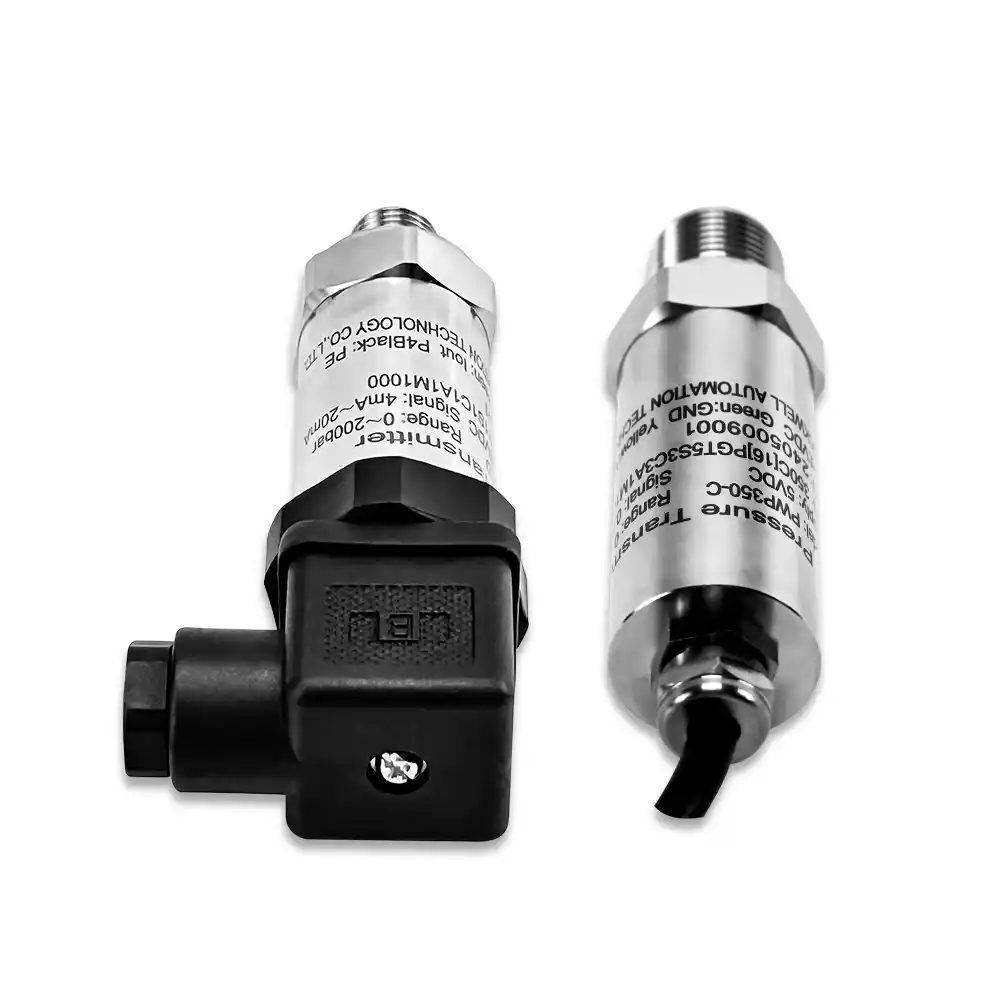

DIN43650 Hirschmann Connector… IP65
Packard Connector… IP65 Directly outlet cable… IP67 M12*4pins connector… IP67 |
| Accuracy | ±0.5%FS, ±0.25%FS, ±0.1%FS optional |
| Signal Output | 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I²C, RS485 |
| Power Supply | 3.3/5VDC, 5-30VDC, 5VDC, 8-24VDC, 12-30VDC |
| Response Time | ≤3ms (10%~90%) |
| Long-term Stability (%FS/year) | ≤0.5 for 0.5%FS accuracy |
| Compensation Temp. | 0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa) |
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Explosion Proof | Exia II CT6 optional |
| Pressure Connect Port | M20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT, male and female optional |
