PWP350-LD Explosion Proof Pressure Transmitter with LCD Display
Features
- 4-bits digital LED/LCD display
- Available with HART or both RS485&4-20mA
- Explosion proof Ex d IIC T5 Gb
- Wide measuring range up to 100MPa
Application:
- Environmental protection
- Coal & mine, iron industry
- Petrochemical, chemical, energy industry
- Civil explosion
- Medicine
- Agricultural, water treatment, food industry
- Shipping
Advantages
- Suits almost all industrial applications
- High precision, good repeatability, good long-term stability, suitable for harsh working conditions
- Wide pressure type including differential pressure

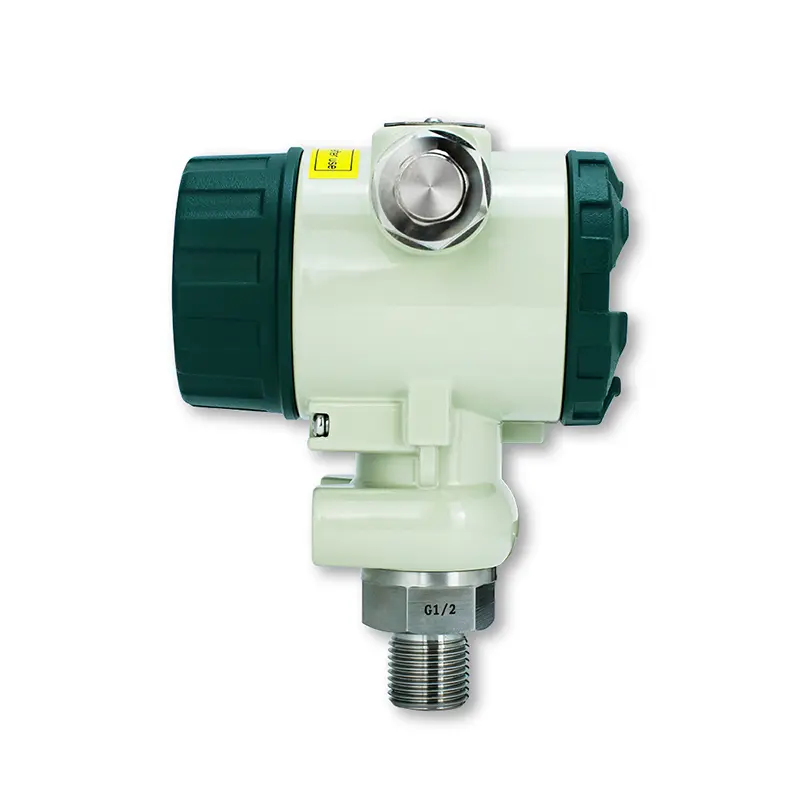

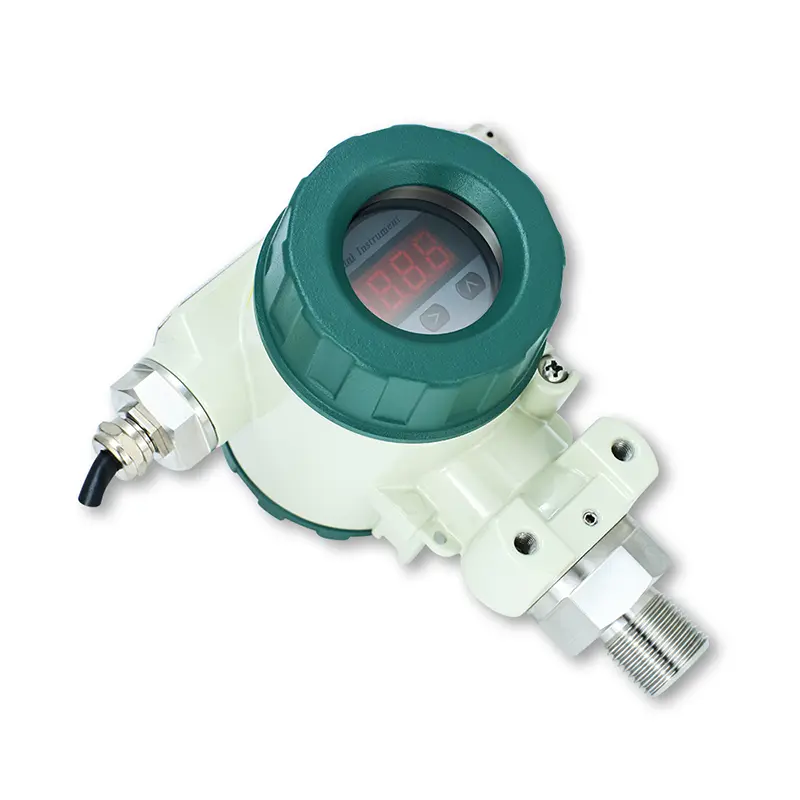

The hazardous area pressure transmitter with digital display with a big HD LED or LCD display, enables to read measured value locally. With a flameproof die-cast aluminum enclosure, let it to have strong resistance for shock and vibration and to perform a great job even in the harshest application conditions. A great choice as explosion proof pressure sensor for refineries, oil and gas.
Technical Parameters
| Model | PWP350-LD |
| Pressure Type | Relative (gauge) /Absolute /Sealed gauge pressure/Differential pressure |
| Pressure Range | -0.1MPa … 0kPa~10kPa …100MPa |
| Safe Overload | ≤200%FS(<10MPa); ≤150%FS(≥10MPa) |
| Burst Pressure | ≤300%FS |
| Electrical Connection | Industrial terminals |
| IP Rating | IP66 |
| Accuracy | ±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional |
| Signal Output | 4-20mA/ HART/0-10V/I2C/RS485 |
| Power Supply | 24VDC/12-30VDC |
| Response Time | ≤3ms |
| Long-term Stability (%FS/year) | ≤0.5 for 0.5%FS accuracy |
| Compensation Temp. | 0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa) |
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -20℃~+85℃ |
| Body Material | SUS304 stainless steel, optional 316L |
| Enclosure Material | Cast aluminum |
| Pressure Connect Port | M20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT, male and female optional |
| Display | LCD or LED display |
| Explosion Proof | Ex d IIC T5 Gb |
