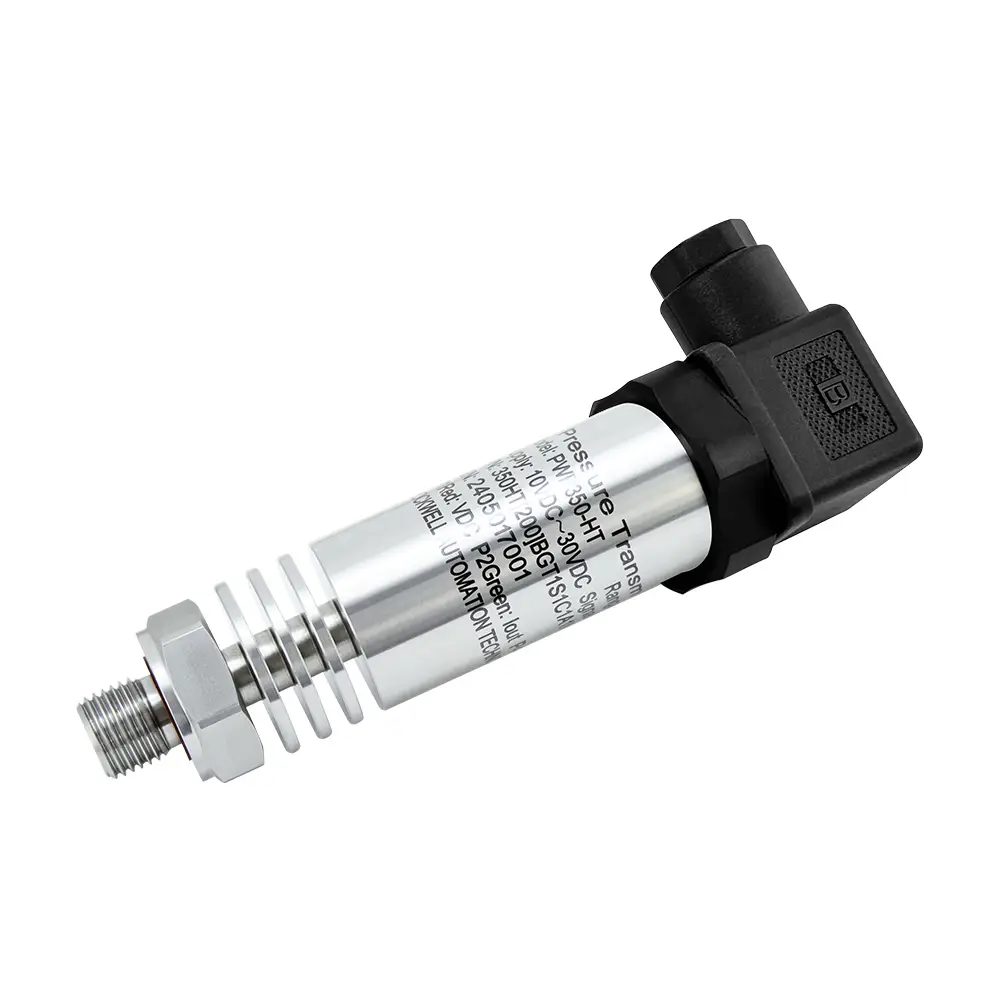

PWP350-HT High Temperature Pressure Transmitter
Features
- All welded stainless steel construction
- Imported sensor core high stability
- Electromagnetic compatible
- Variety choices for structure, outputs, electrical connectors and pressure ports.
Application:
- Food processing
- Water, steam, boiler
- Chemical industry
- Oil & Gas
- Biotechnology
- Pharmaceutical, medical
- Steel manufacturing
Advantages
- Tolerant max 500℃
- 200% range safe overload
- 3 timesrange burst pressure
- Surge protection
The industrial high temperature pressure sensor equips with Germany imported piezoresistive sensing element and different format of cooling device, to let transmitter accurately measure the pressure at high temperature applications, for example high temperature hot air pressure transducer and water pressure sensor for high temperature applications.
Technical Parameters
| Model | PWP350-HT |
| Pressure Type | Relative (gauge) /Absolute pressure/Sealed gauge pressure |
| Pressure Range | -0.1MPa…0kPa~10kPa …100MPa |
| Safe Overload | ≤2 times (<10MPa); ≤1.5 times(≥10MPa) |
| Burst Pressure | 3 times |
| Electrical Connection
& IP Rating |
DIN43650 Hirschmann Connector… IP65
Directly outlet cable… IP67 |
| Accuracy | ±0.5%FS, ±1.0%FS |
| Signal Output | 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I²C, RS485 |
| Power Supply | 3.3/5VDC, 5-30VDC, 5VDC, 8-24VDC, 12-30VDC |
| Response Time | ≤3ms (10%~90%) |
| Non-linear ( %FS ) | ≤0.4 for 0.5%FS |
| Hysteresis ( %FS ) | ≤0.1 for 0.5%FS |
| Repeatability (%FS) | ≤0.1 for 0.5%FS |
| Long-term Stability (%FS/year) | ≤0.5%FS ±0.05%/year |
| Zero Temp Drift ( %FS/℃ ) | ≤0.05%FS/℃(≤100kPa) ≤0.03%FS/℃(>100kPa) |
| Working Temp. | Medium -40℃~+500℃; Environmental -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Explosion Proof | Exia II CT6 |
| EMC Standard | EN IEC 61326-1:2021; EN IEC 61326-2:2021 |
