PWP350-D Pressure Transmitter with Display
Features
- With 4 bits LED display
- Adjustable on/off switch
- Equipped with 3 intelligent protection
- Fully welded stainless steel housing
Application:
- Water treatment
- Cooling system
- Machinery equipment
- Hydraulic and pneumatic
- Industrial process control
- Pumps and compressors
- Food industry
Advantages
- Excellent EMC performance
- High cost-effective
- high-speed response
- Zero point and full point calibration

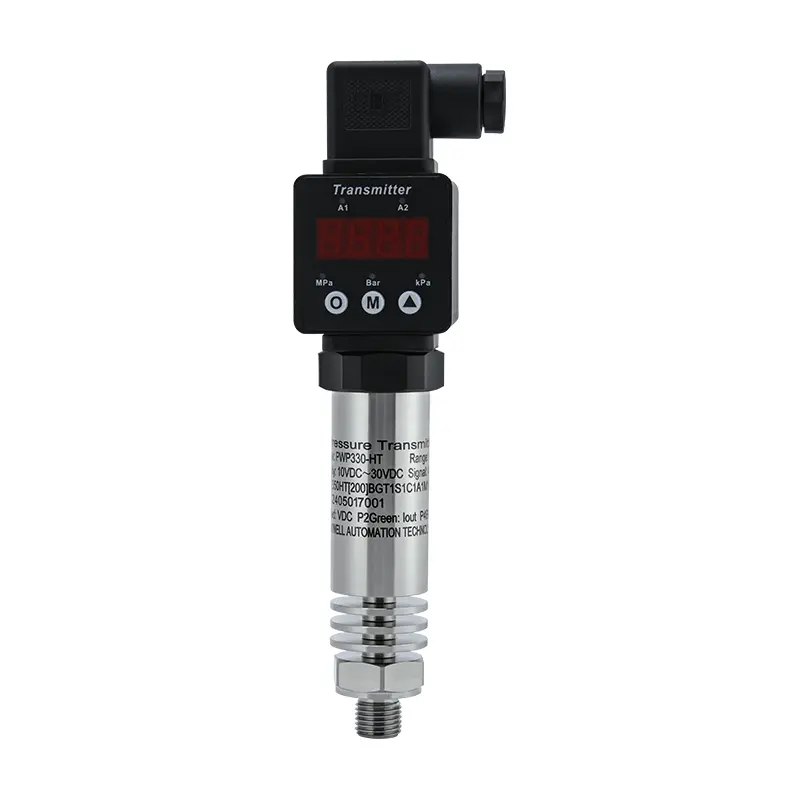

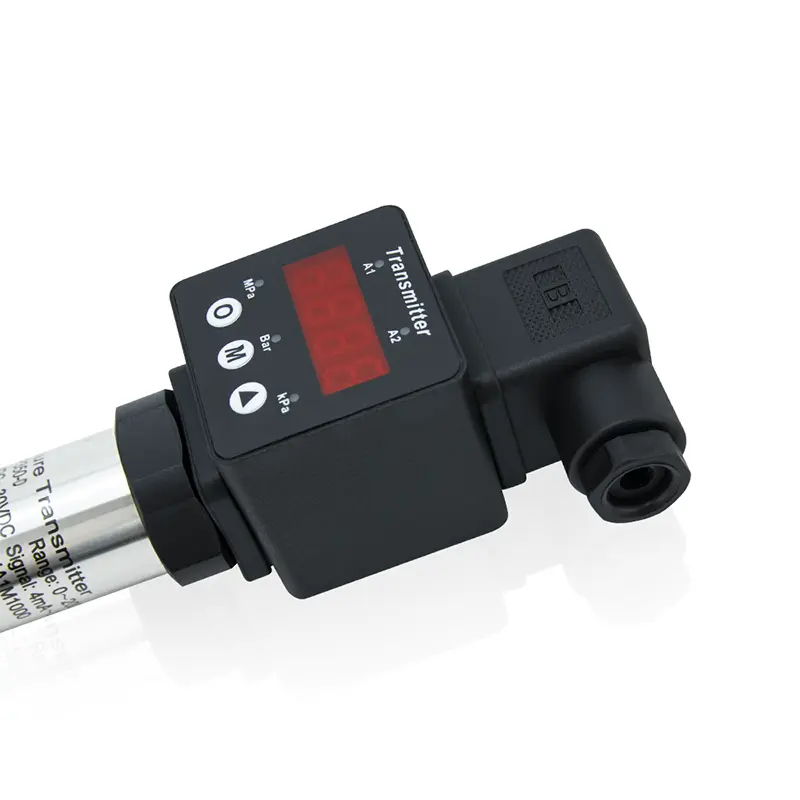

The silicon pressure sensor with local digital display, applies high quality imported piezoresistive pressure sensor chip, the core is MCU(microcontroller unit). Convenient for workers to have real time readings in the field and very easy to use. It can be also used as high temperature piezoresistive pressure sensor with display with cooling fins.
Technical Parameters
| Model | PWP350-D |
| Pressure Type | Relative (gauge) /Absolute pressure |
| Pressure Range | -0.1MPa … 0kPa~10kPa …100MPa |
| Safe Overload | ≤150%FS |
| Burst Pressure | 200%FS |
| Electrical Connection | DIN43650 Hirschmann Terminal box |
| IP Rating | IP65 |
| Indicator Info. | 4-digital display, 0.1%FS accuracy, units MPa, KPa, bar |
| Accuracy | ±0.5%FS |
| Signal Output | 4-20mA / 4-20mA+Relay NPN |
| Power Supply | 24VDC |
| Response Time | ≤3ms (10%~90%) |
| Long-term Stability (%FS/year) | ≤0.5 |
| Zero Temp Drift ( %FS/℃ ) | ≤0.05 |
| Compensation Temp. | -10℃~+60℃(Typical), optional |
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Service Life | >10 million load cycles (within measurement range) |
