Refrigeration & HVAC
Pokcenser offers a range of Refrigeration & HVAC pressure sensors. Those compact ceramic pressure sensors ensure precise measurements of pressures allowing safe & energy efficient operation of the system controls and are approved for all common refrigerants in use. Uses a highly reliable imported ceramic piezoresistive pressure sensor. In the range you will find pressure sensors optimized for a variety of different applications & pressures as well as a variety of electrical connections. They features long lifetime, high resistance to shock and vibration, >10 million pressure cycles.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

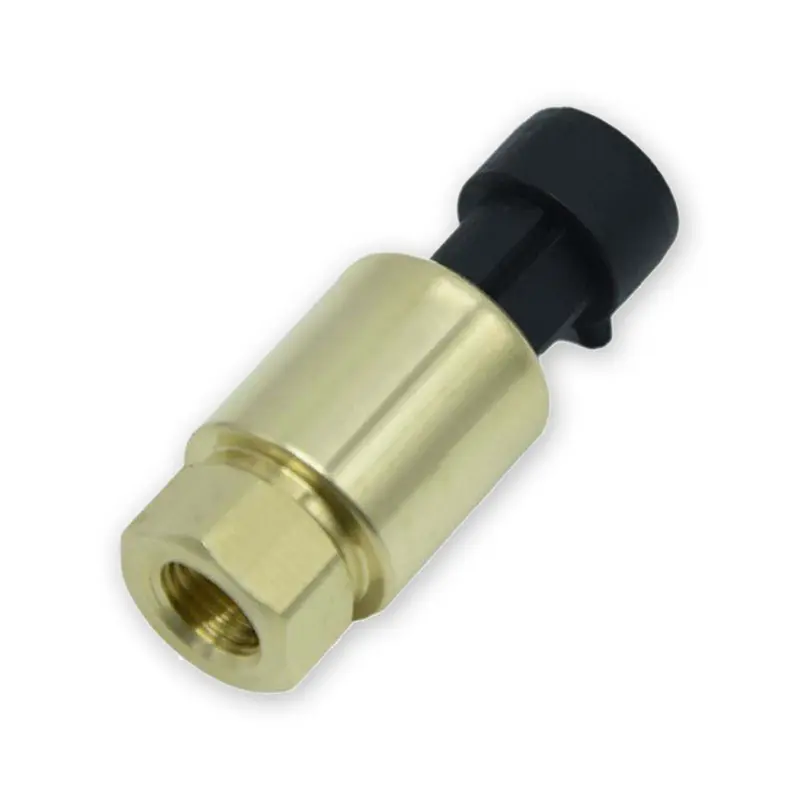

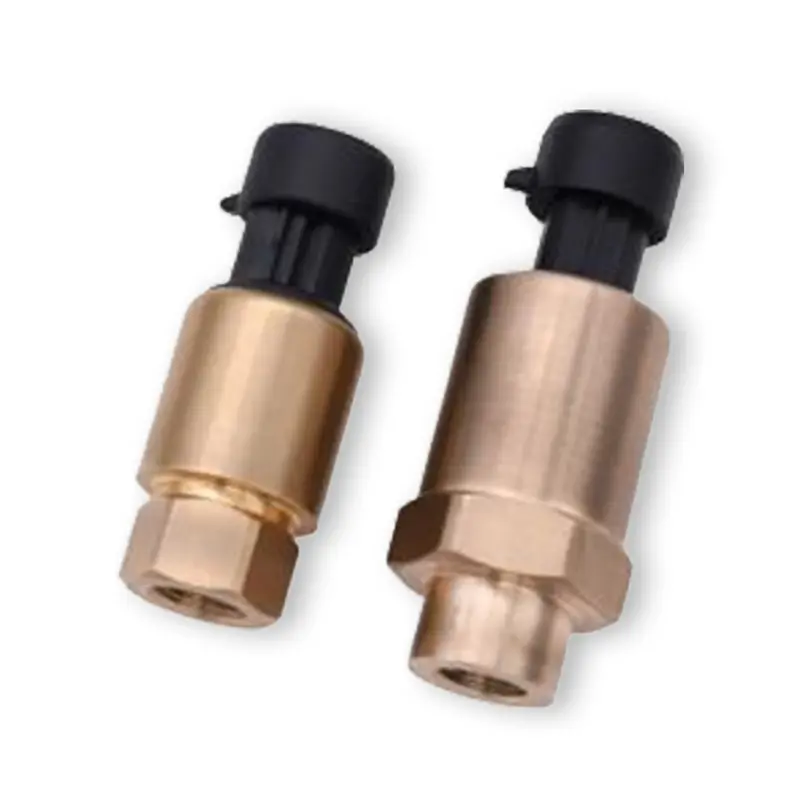

PWP311 HVAC Pressure Sensor
Features
- Packard connector: Provide 2-wire or 3-wire signal output
- Brass housing: Fully sealed brass housing, waterproof and impact-resistant
- Overvoltage protection: 2 times overvoltage protection
- Refrigerant compatibility: R12, R22, R410a, R507 and other general refrigerants
- Customizable pressure port: 7/16-20UNF, G1/4”, 1/4”NPT, G1/2”…
- Temperature compensation at 0~50℃
Application:
- HVAC System
- Air Conditioning System
- Compressor
- Refrigeration unit
- Pipeline system
- Air source heat pump
- Automation control
Advantages
- Compact size
- Particularly cost-effective
- Excellent quality and proven technology
- Long service life
- Electromagnetic compatible
This HVAC pressure transducer is a compact design and low cost pressure sensor, adopts highly reliable ceramic pressure sensor with certificate. Measuring absolute and gauge pressure, range -1 bar to 400 bar. This bestseller can tolerate up to 10 million load cycles with almost constant precision.
Technical Parameters
| Model | PWP311 |
| Pressure Type | Relative (gauge) /Absolute pressure |
| Pressure Range | -0.1MPa～0MPa …5MPa |
| Accuracy | ±0.5%FS |
| Safe Overload | 200%FS |
| Burst Pressure | 300%FS |
| Electrical Connection | Packard Connector |
| IP Rating | IP65 |
| Signal Output | 4-20mA0.5-4.5V/0-5V/0-10V |
| Power Supply | 10-30VDC/5VDC/8-24VDC/12-30VDC |
| Working Temperature | -40℃~+80℃ |
| Medium Compatible | R12, R22, and other refrigerants |
| Long-term Stability | ≤0.5%FS/year |
| Repeatability | ≤0.1%FS |
| Process Connection | 7/16-20UNF female, 1/2”-20UNF, M20x1.5, G1/4”, 1/4″NPT, female and male optional |
| Housing Material | Brass, SUS304 |
