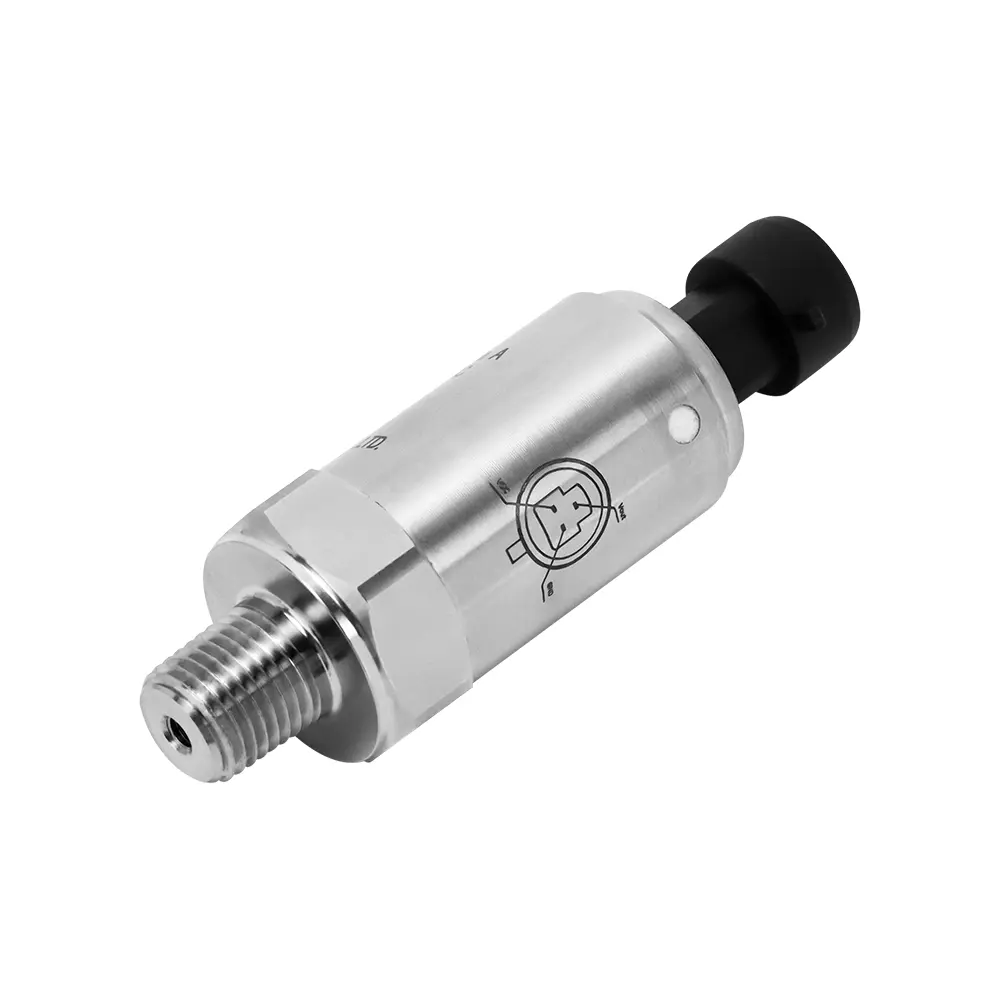

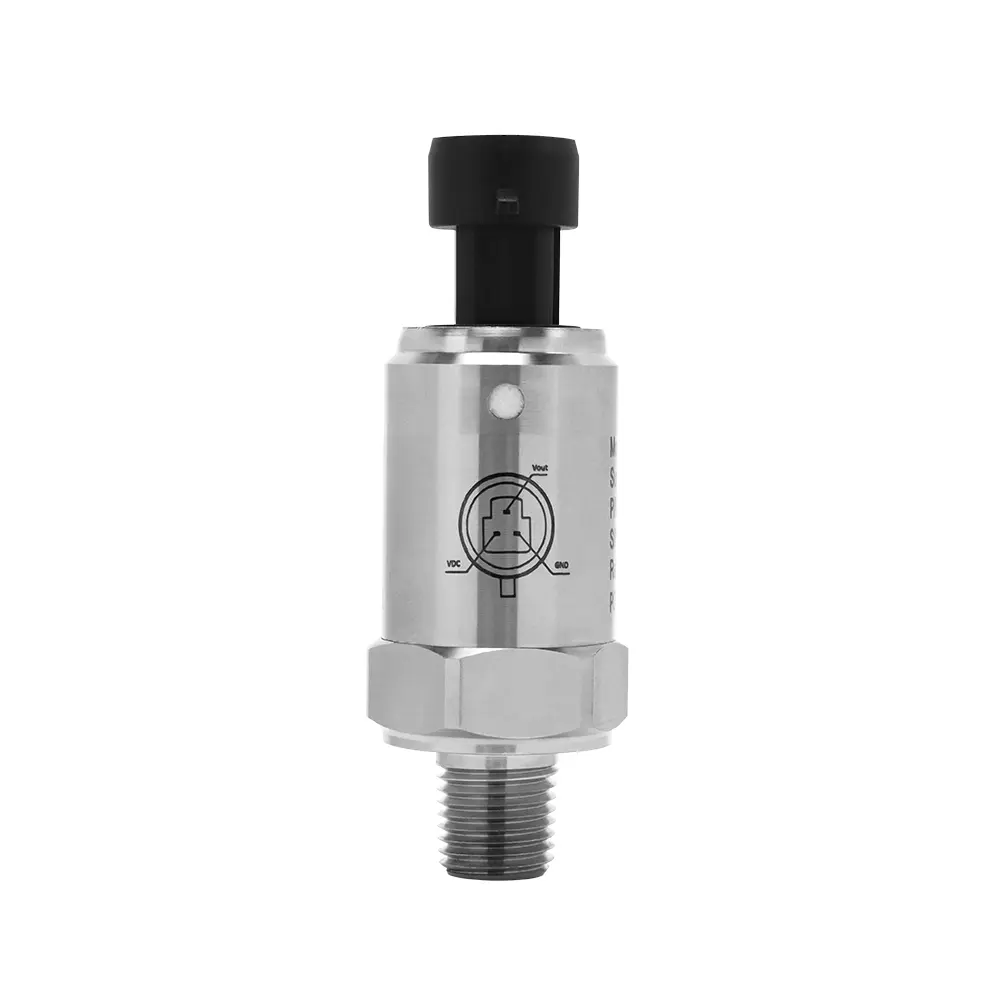

PWP310-P Refrigeration Pressure Sensor
Features
- Germany imported ceramic sensor: Fast response, high stability
- SUS304/316L stainless steel housing: Corrosion-resistance
- Damping design: Anti-impact, avoid damage caused by instantaneous pressure shock, and extend service life
- Temperature compensation at 0~50℃
- Pressure ranges in relative (gauge) or absolute from 0 up to 400 bar
Application:
- Refrigeration equipment
- Air Conditioning System
- Compressor
- Refrigeration unit
- Air source heat pump
- HVAC systems
Advantages
- Compact size: Convenient for installation in tight place
- Particularly cost-effective
- Excellent quality and proven technology
- Long service life
The refrigeration pressure transducer adopts advanced ceramic pressure sensor with analog output. After temperature compensation, digital circuit correction and signal conditioning, enable it widely used in refrigeration and HVAC systems and is compatible with various types of refrigerants.
Technical Parameters
| Model | PWP310-P |
| Pressure Type | Relative (gauge) /Absolute pressure |
| Pressure Range | -0.1MPa~0MPa …40MPa |
| Safe Overload | ≤200%FS |
| Electrical Connection | Packard Connector |
| Protection Grade | IP67 |
| Accuracy | ±0.5%FS |
| Signal Output | 4-20mA/0.5-4.5V/0-5V/0-10V |
| Power Supply | 10-30VDC/5VDC/8-24VDC/12-30VDC |
| Response Time | ≤3ms |
| Working Temp. | -40℃~+80℃ |
| Storage Temp. | -40℃~+85℃ |
| Body Material | SUS304 stainless steel |
| Pressure Connection | 7/16-20UNF, M20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT male and female optional |
