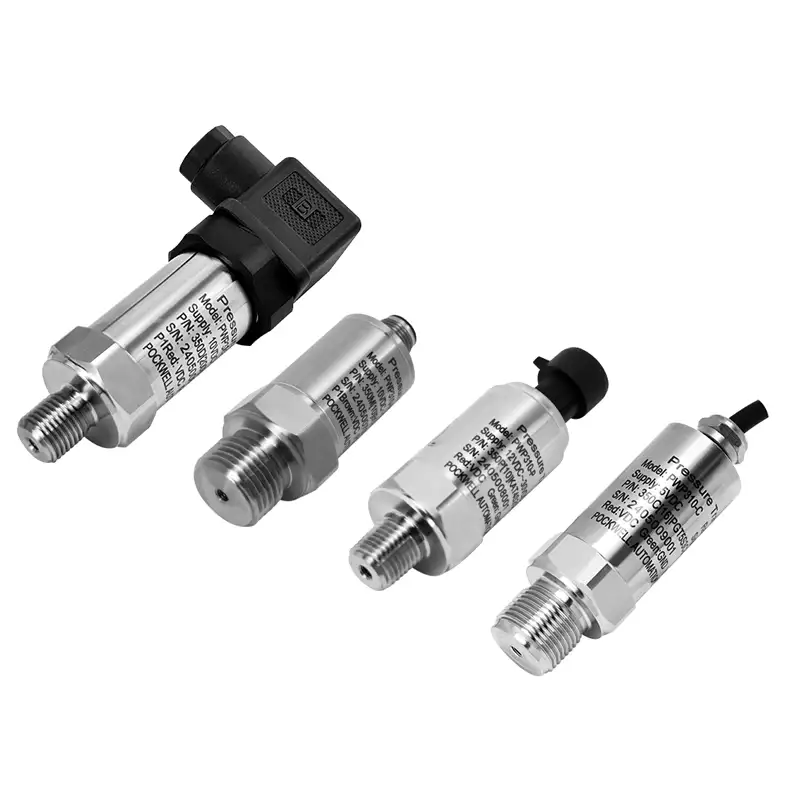

PWP310 Compact Pressure Sensor
Features
- Germany imported ceramic sensor: Fast response, high stability
- SUS304/316L stainless steel housing: Corrosion-resistance
- Damping design: Anti-impact, avoid damage caused by instantaneous pressure shock, and extend service life
- Temperature compensation at 0~50℃
- Pressure ranges in relative (gauge) or absolute from 0 up to 400 bar
Application:
- HVAC System
- Air Conditioning System
- Compressor
- Refrigeration unit
- Pipeline system
- Air source heat pump
- Automation control
Advantages
- Compact size: Convenient for installation in tight place
- Particularly cost-effective
- Excellent quality and proven technology
- Long service life
Industrial ceramic pressure sensor features compact size, equips with a reliable imported ceramic piezoresistive pressure sensor. After temperature compensation, digital circuit correction and signal conditioning, enable it as a high stability ceramic pressure sensor.
Technical Parameters
| Model | PWP310 |
| Pressure Type | Relative (gauge) /Absolute pressure |
| Pressure Range | -0.1MPa~0MPa …40MPa |
| Safe Overload | ≤200%FS |

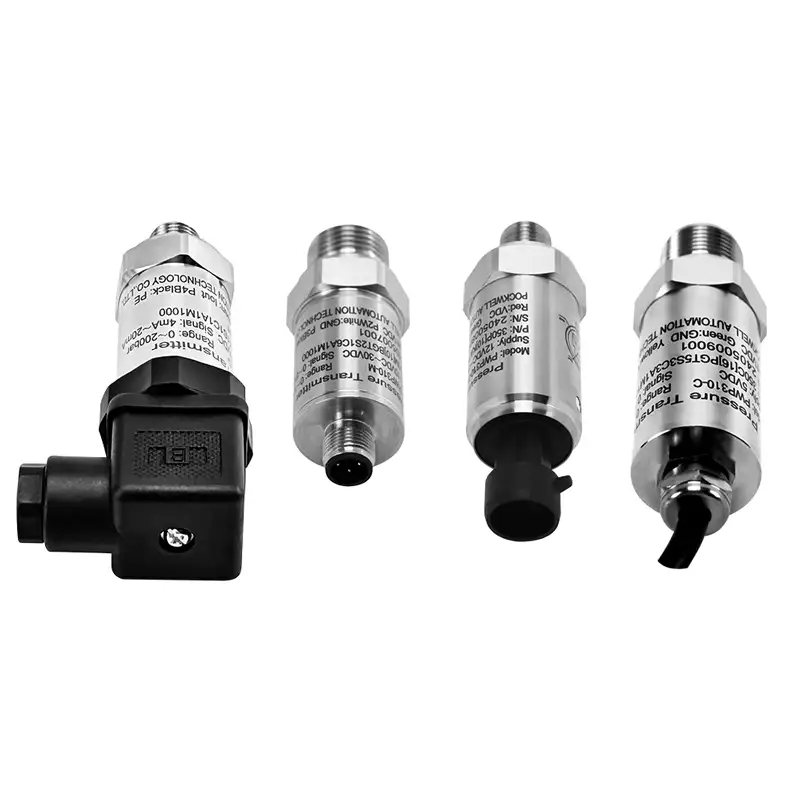

| Electrical Connection
& IP Rating |
DIN43650 Hirschmann Connector… IP65 Packard Connector… IP65 Directly outlet cable… IP67 M12*4pins connector… IP67 |
| Accuracy | ±0.5%FS |
| Signal Output | 4-20mA/0.5-4.5V/0-5V/0-10V |
| Power Supply | 10-30VDC/5VDC/8-24VDC/12-30VDC |
| Response Time | ≤3ms |
| Working Temp. | -40℃~+80℃ |
| Storage Temp. | -40℃~+85℃ |
| Body Material | SUS304 stainless steel |
| Pressure Connection | 7/16-20UNF, M20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT male and female optional |
