PWL-UH100 Portable Ultrasonic Water Depth Meter

Features

  • 50m, 100m, 200m, 300m depth
  • ±5%F.S. accuracy
  • DC12V rechargeable battery, 6 hours intermittent standby time
  • 4-20mA + RS485 Modbus RTU

Application:

  • Hydrographic surveying
  • Hydropower plant
  • Reservoirs
  • Lakes, rivers
  • Shallow seas

Advantages

  • Low maintenance
  • High reliability
  • Long service life
  • Simple operation and easy to use
  • Accurate measurement

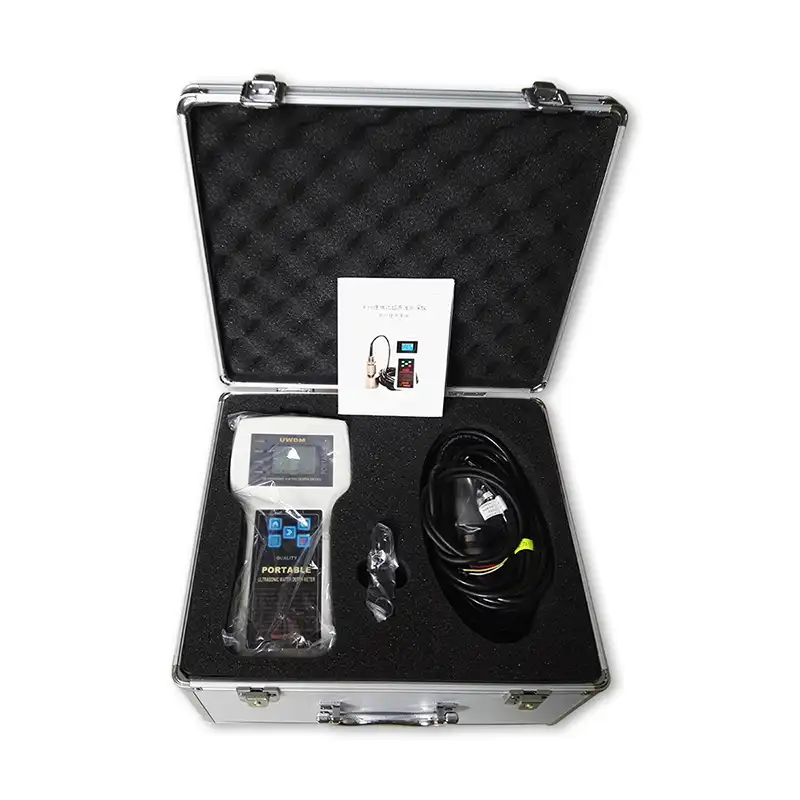

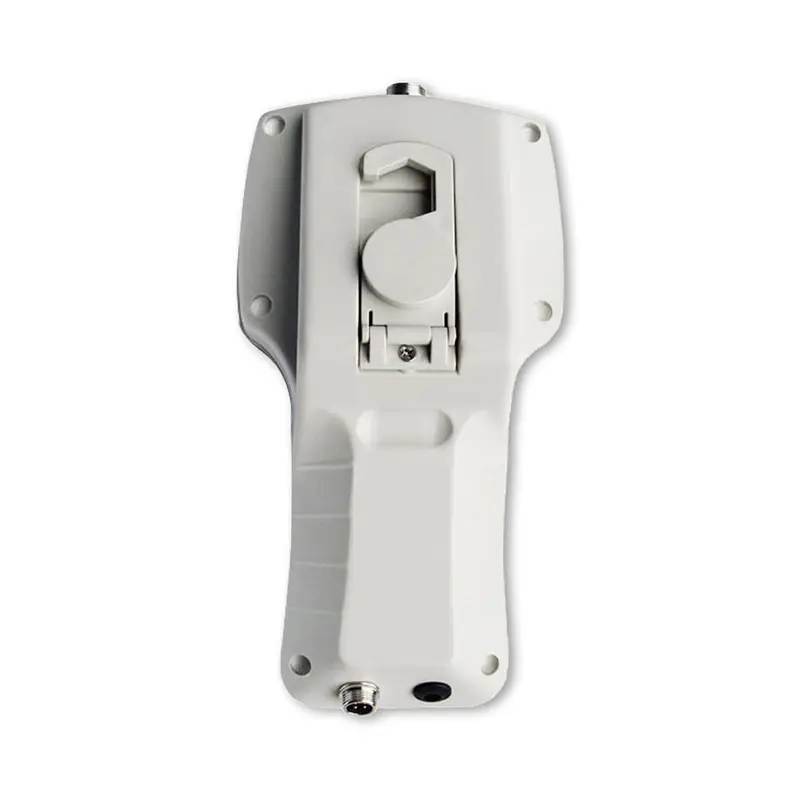

Portable Ultrasonic Water Depth Meter is a handheld water depth measuring instrument for measuring reservoirs, lakes, rivers, shallow seas and other waters. To place ultrasonic transducer on the water surface or at a certain position in the water, current water depth will be automatically calculated by the instrument using the propagation principle of ultrasonic waves in the water.

Resources

Datasheet

File Name

Time

Type

Download

PWL-UH100 Portable Ultrasonic Water Depth Meter

May 05, 2025

PDF

Technical Parameters

Model PWL-UH100
Medias Fresh water, sea water
Measuring Range 50m, 100m, 200m, 300m
Blind Zone ≤800~1200mm according to range
Accuracy ±0.5%FS
Beam Angle 18° ±2°
Signal Output 4-20mA + RS485 Modbus RTU
Power Supply Built-in DC12V rechargeable battery
Intermittent standby time is about 6 hours
Display 4 bits LCD Backlight display
Keyboard Five-digit touch buttons
Working Temp. 0℃~40℃
Storage Temp. -20~70℃
Protection Level Sensor IP68
Cable Length 10m typical, can order 20m, 30m, 50m
Installation Method Transmitter by handheld; Sensor by 1” thread
