Ultrasonic Level Sensor

Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

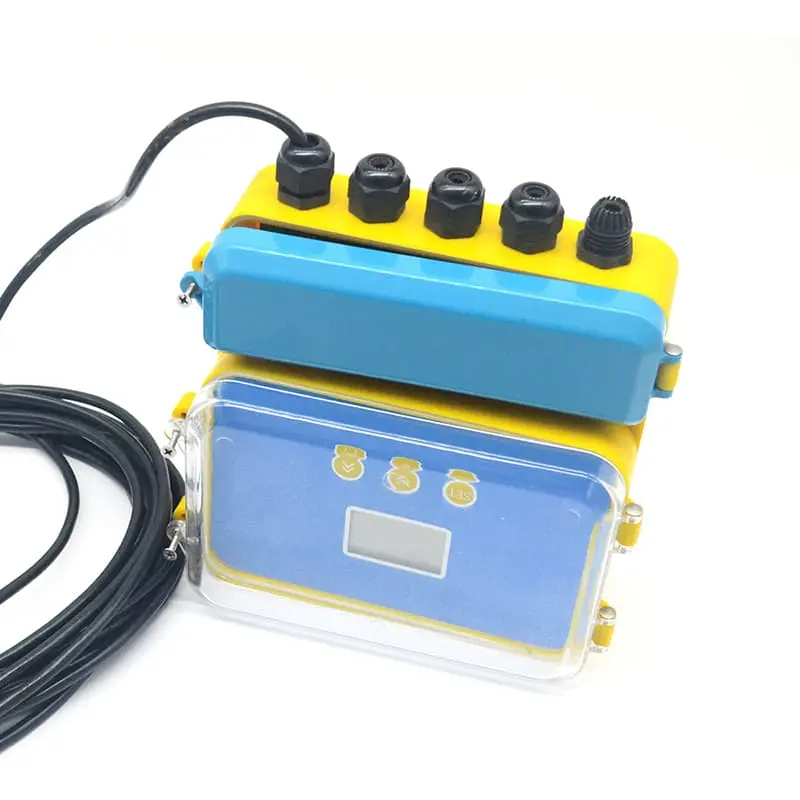

PWL-U707 Ultrasonic Level Transmitter – Remote Type

Features

  • Ultrasonic working principle, non-contact measurement method
  • Sun protection cover design, IP65protection grade
  • Over voltage and over current protection
  • Measuring Range: 5m, 10m, 15m, 20m…60m
  • Both level and distance is shown
  • Optional relay output

Application:

  • Fuel level monitoring
  • Liquid level measurement
  • Water tanks
  • River, lake and pool
  • Solid particle level measurement

Advantages

  • Split type for convenient remote monitoring
  • Intelligent filtering algorithm design, more accurate
  • Simple installation with no calibration necessary
  • Less than 9°beam angle design, less than 200ms responding time
  • NLEPF engineering composite materials, durable and corrosion-resistant
  • Corrosive-resistant

This non-contact ultrasonic level transmitter is a liquid level sensor with remote monitoring. The intelligent filtering algorithm design is adopted to effectively eliminate false echoes in actual measurements, improve the signal-to-noise ratio, and make the measurement more accurate.

Resources

Datasheet

File Name

Time

Type

Download

PWL-U707 Ultrasonic Level Transmitter – Remote Type

May 05, 2025

PDF

Technical Parameters

Model PWL-U707
Measuring Range 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Blind Zone 0.25-1.2m (According to the range)
Accuracy ±0.5%FS(Typical), ±0.25%FS by customized
Signal Output 4-20mA/0-5V/1-5V/0-10V/RS485/RS232/Relay
Power Supply 24VDC/12VDC/220VAC
Display With
Resolution 3mm or 0.1% (Which one is max)
Working Temp. -20℃~60℃
Working Pressure 2 bar
Working Humility ≤80%RH, no condensation
Protection Level Sensor IP68, Indicator IP65
Cable Length 10m as standard, max 100m
Housing Material NLEPF synthetic material
Installation Method Threaded
Corrosive Application Yes available to customize PVFD or PTFE sensor probe
