Ultrasonic Level Sensor

Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

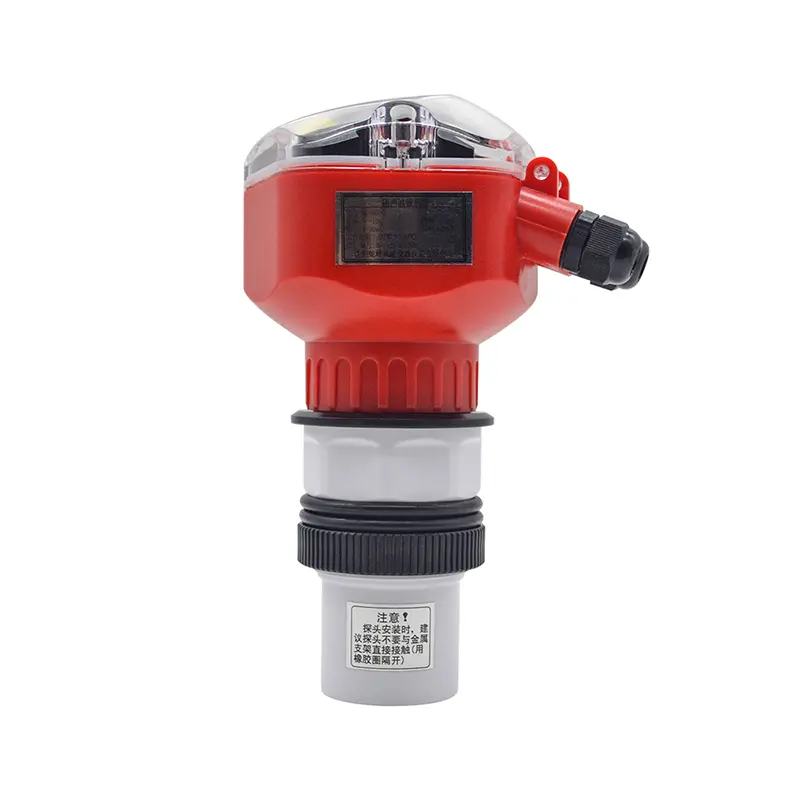

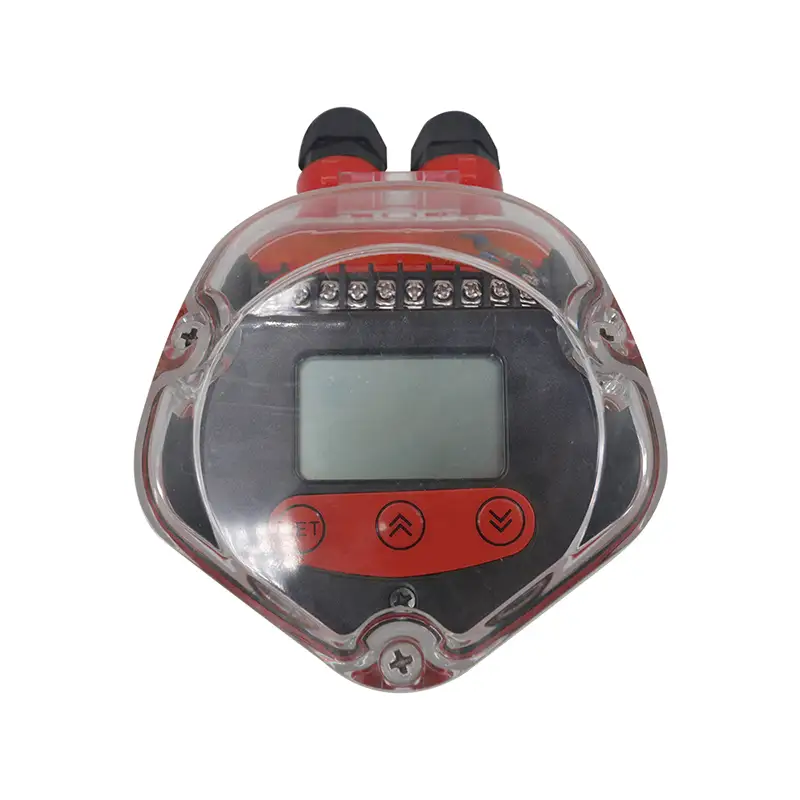

PWL-U700 Ultrasonic Level Transmitter

Features

  • Ultrasonic working principle, non-contact measurement method
  • Sun protection cover design, IP66 protection grade
  • Over voltage and over current protection
  • Max measuring range 60m
  • Both level and distance is shown
  • Optional relay output

Application:

  • Fuel level monitoring
  • Liquid level measurement
  • Water tanks
  • River, lake and pool
  • Solid particle level measurement

Advantages

  • Intelligent filtering algorithm design, more accurate
  • Simple installation with no calibration necessary
  • NLEPF engineering composite materials, durable and corrosion-resistant
  • Less than 9°beam angle design, less than 200ms responding time
  • Corrosive-resistant

The industrial ultrasonic level transmitter is a non-contact, highly reliable, cost-effective, easy-to-install and maintain liquid measuring instrument. It can meet most liquid level measurement requirements without contacting the medium. PVFD or PTFE sensor probe material is available when there is a need with liquid level sensor for corrosive liquids.

Resources

Datasheet

File Name

Time

Type

Download

PWL-U700 Ultrasonic Level Transmitter

May 05, 2025

PDF

Technical Parameters

Model PWL-U700
Measuring Range 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Blind Zone 0.25-1.2m (According to the range)
Accuracy ±0.5%FS(Typical), ±0.25%FS by customized
Signal Output 4-20mA/0-5V/1-5V/0-10V/RS485/RS232/HART/Relay
Power Supply 24VDC/12VDC/220VAC
Display With
Resolution 3mm or 0.1% (Which one is max)
Working Temp. -20℃~60℃
Working Pressure 2 bar
Working Humility ≤80%RH, no condensation
Protection Level IP66
Cable Length None
Housing Material NLEPF synthetic material
Installation Method Threaded
Corrosive Application Yes available to customize PVFD or PTFE sensor probe
