Ultrasonic Level Sensor
Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

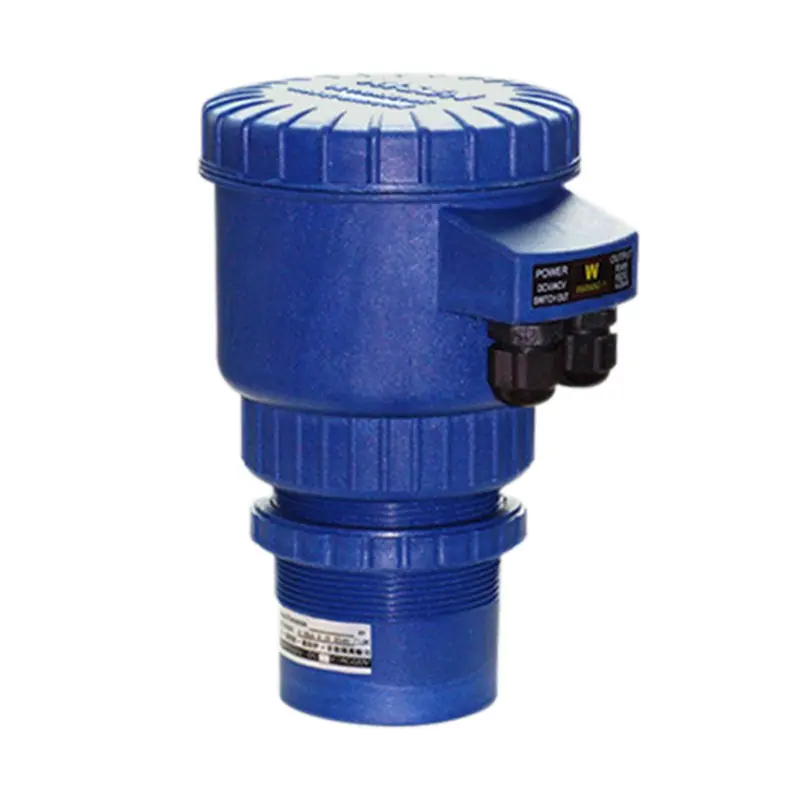

PWL-U501 Ultrasonic Liquid Level Sensor
Features
- Wide measuring range: 5m, 7m, 10m, 15m
- 0-50℃ temperature compensation, accurate measurement
- One-touch factory reset function
- Intelligent recognition function for anti-interference
- Multi-level adjustment of ultrasonic emission intensity
- Multiple output signals: analog, digital and switch
Application:
- Hydrological flood control
- Oil level supervision
- Sewage treatment
- Dyeing pool
- Water tanks
Advantages
- Non-Contact Measurement
- Available for variety of medias
- Support distance measurement mode or level measurement mode
- Support calibration online for distance measurement accuracy in different environment
- Support screw-in and roller clamp installation method

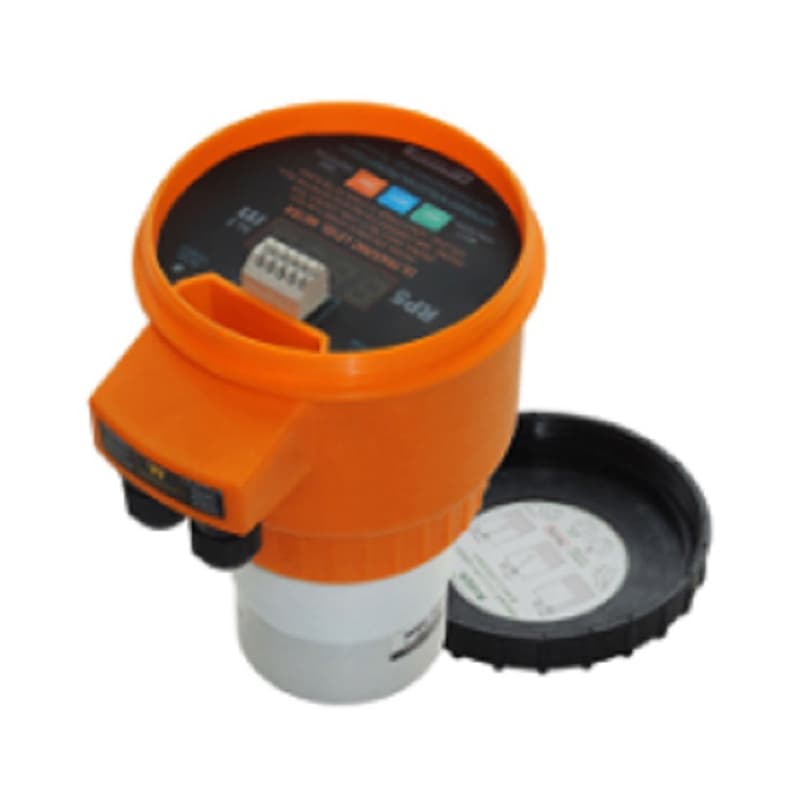

Ultrasonic liquid level sensor with display has all gold-plated circuit board and is tested under 48 hours high and low temperature aging. It promises higher and long term reliability. Check more about this liquid level sensor with LED display.
Technical Parameters
Model | PWL-U501 |
Measuring Range | 5m, 7m, 10m, 15m |
Blind Area | ≤300mm for ≤5m range;
≤500mm for ≤7m range; ≤500mm for ≤10m range; ≤800mm for ≤15m range. |
Beam Angle | 15° for ≤5m range;
12° for ≤7m range; 12° for ≤10m range; 9° for ≤15m range; |
Accuracy | ±0.5%FS(Typical), ±0.25%FS by customized |
Signal Output | 4~20mA/0-5V/1-5V/0-10V/1-10V/RS485/RS232/Relay |
Power Supply | 24VDC/12VDC |
Consumption | <1.5W |
Resolution | 1mm |
Working Temp. | -20℃~70℃ |
Protection Level | IP66; IP68 by customization |
Housing Material | NLEPF synthetic material |
Installation Method | Screw-in type: thread dimension M68x2.0mm
Roller clamp type: hole opening size Φ70mm |
Explosion Proof | Ex ia II AT3 (optional) |
Display | 4 bits LED display(LCD optional) |
