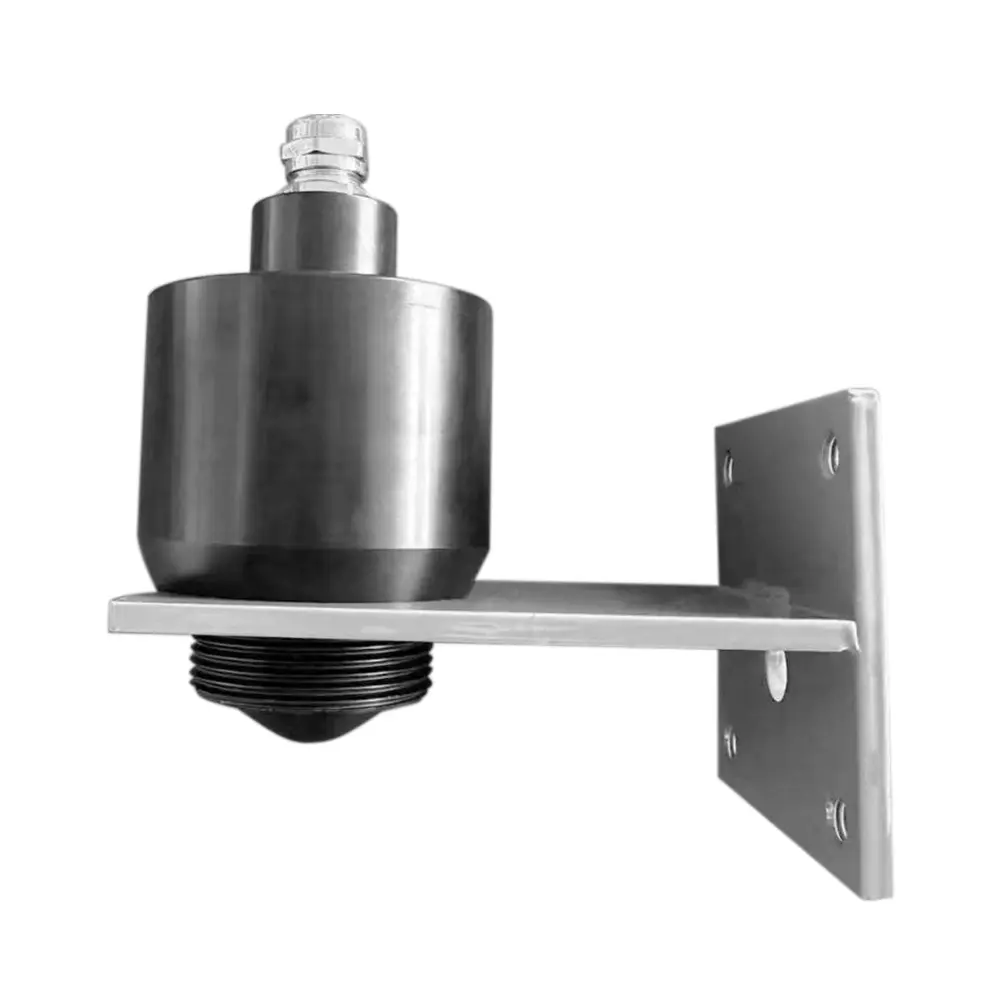

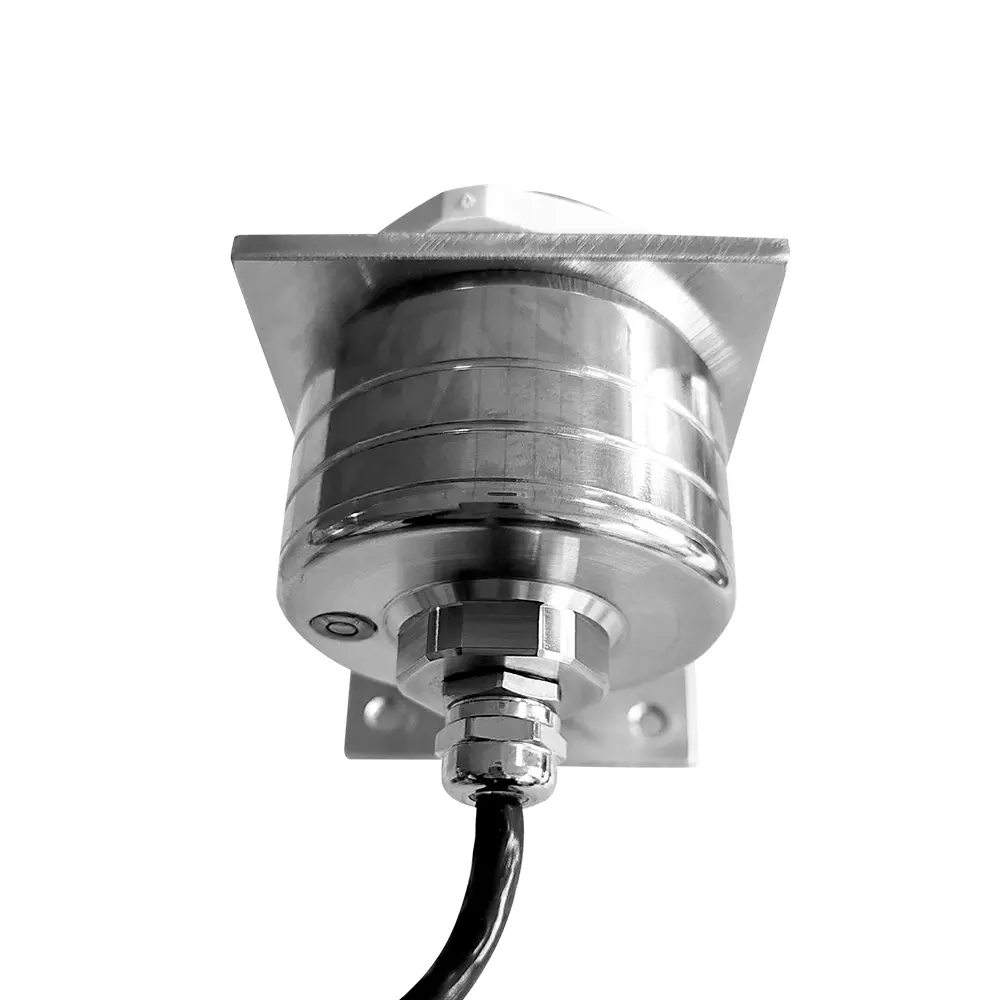

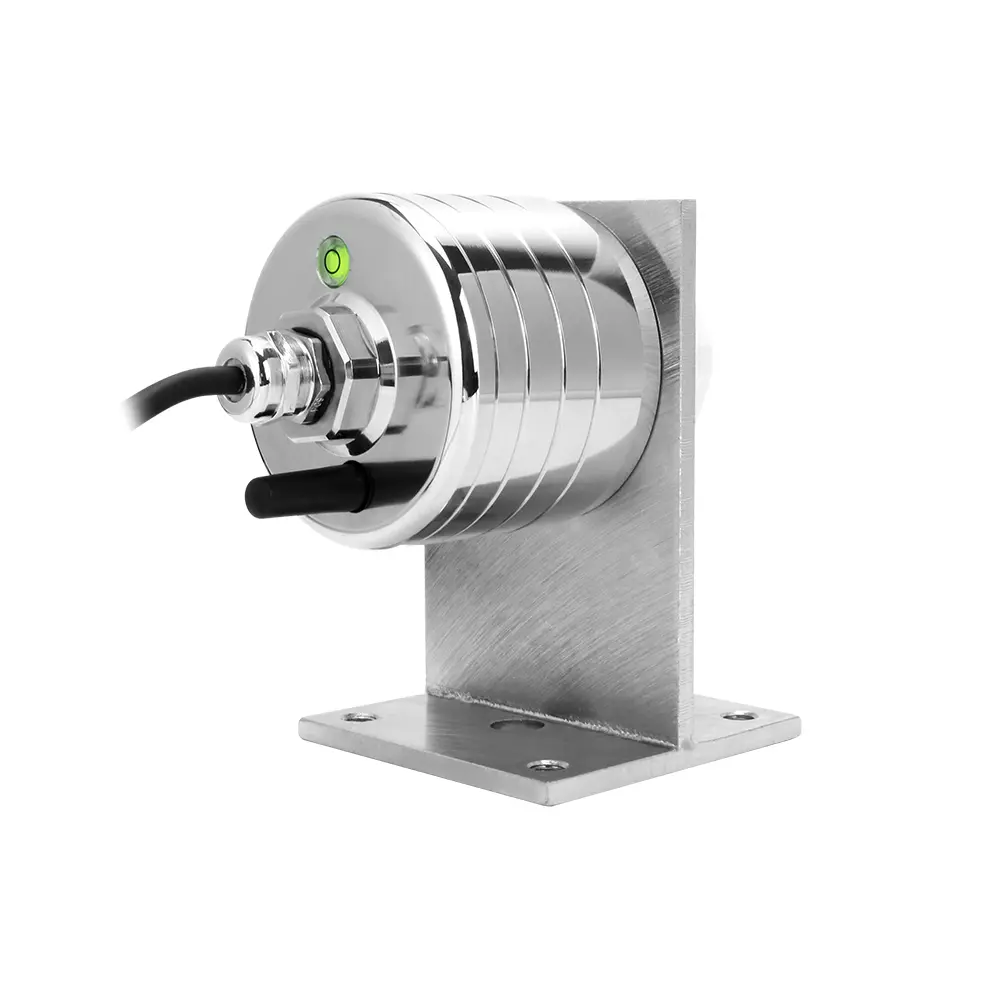

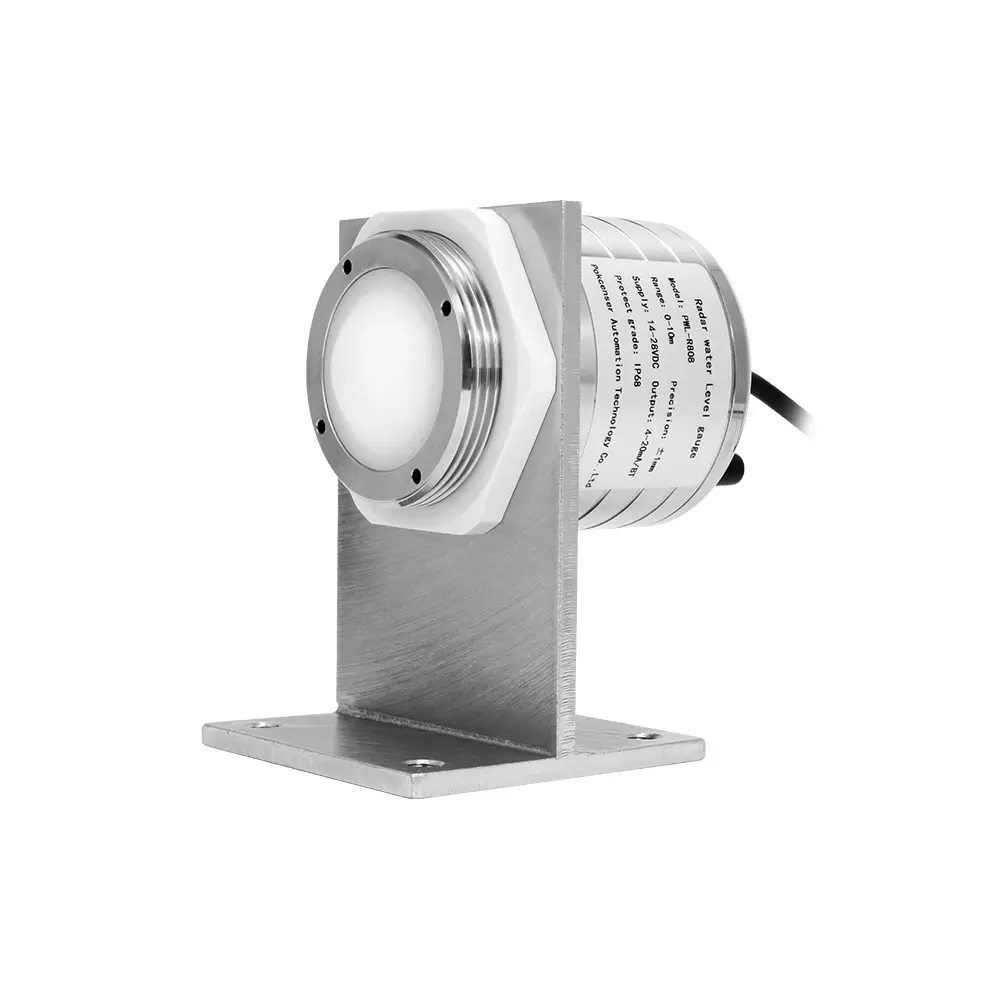

PWL-R808 Radar Water Level Sensor
Features
- 76-81GHz FMCW radar
- 5GHz working frequency bandwidth, higher resolution and precision
- IP68protection level
- POM and stainless steel housing optional
- Installation bracket is included
- 0-65m measuring range
Application:
- Rivers
- Damsand lakes
- Open channels
- Underground pipe network
- Vented water tanks without steam
Advantages
- Integrated lens design, compact size.
- Millimeter wave RF chip, higher signal-to-noise ratio, smaller blind area
- Support bluetooth debugging to facilitate the maintenance work
- Narrowest 6°antenna beam angle, less impact from interference in the installation environment
The compact radar water level sensor has 4-20mA or RS485 Modbus output. 65 meters measuring range. Mounting bracket is provided. It is an economic water level sensor with bluetooth.
Technical Parameters
Model | PWL-R808 |
Application | Water level at rivers, dams, lakes, underground pipe network |
Measuring Range | 0.1 m ~65m |
Blind Zone | 10cm |
Accuracy | ±1mm |
Frequency | 76GHz ~ 81GHz, 5GHz FMCW bandwidth |
Beam Angle | 6° |
Signal Output | 4-20mA/HART |
Power Supply | 14~28VDC |
Display | Without |
Bluetooth | Available for 0-35m range only, and within 12m away from sensor |
Working Temp. | -30 ~ 75℃ |
Working Pressure | Atmospheric |
Antenna Type | Lens antenna |
Protection Level | IP68 |
Cable Length | 10 meters |
Housing Material | POM plastic or stainless steel SUS304 |
Installation Method | Threaded or by bracket (Bracket is along with shipment) |
