Radar Level Sensor

Pokcenser provides full range of high accuracy radar level sensor which apply Frequency Modulated Continuous Wave (FMCW), which has a higher operating frequency and a shorter wavelength, particularly suitable for not only liquid but also solid applications. Despite 80GHz technology for unbeatable level accuracy, they can conquer the most harsh conditions like high temperature up to 300℃, pressurized tanks, powder and dust environment silos, corrosive chemical solvents, long measuring range of 120 meters, etc. IP67/IP68 protection grade, and narrowest 3°antenna beam angle, makes it less impact from interference in the installation environment. No matter radar level sensor for liquids, or radar level sensor for solids, we get one for you!

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

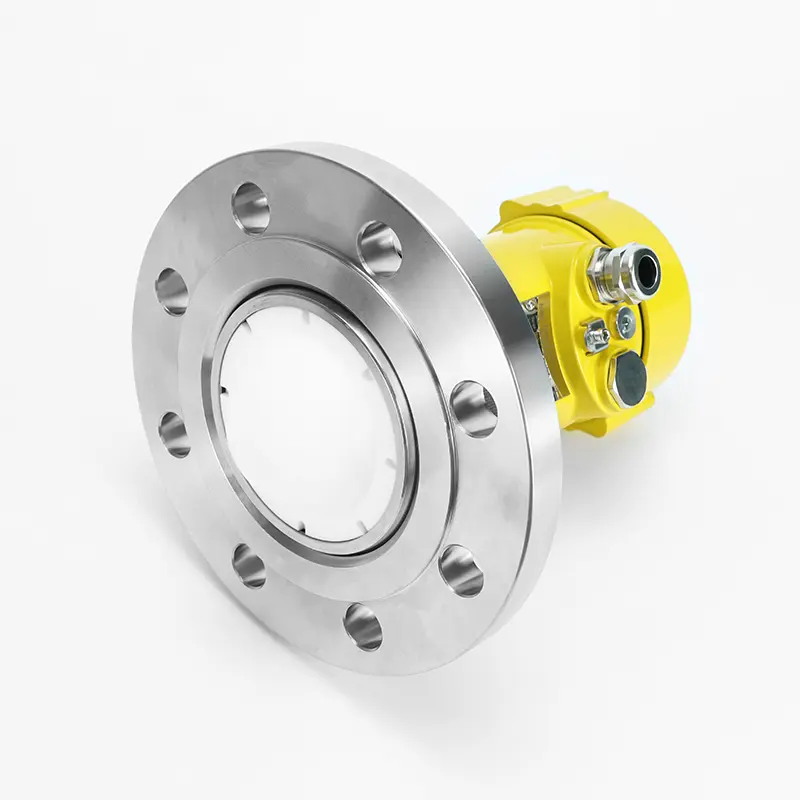

PWL-R803 Solids Radar Level Sensor

Features

  • 76-81GHz FMCW radar
  • IP67 protection level
  • Support HART, RS485 Modbus RTU protocol
  • Accuracy ±1mm/±5mm/±10mm
  • Cast aluminum and SUS304 enclosure optional
  • Large lens antenna with universal flange blowing function

Application:

  • Strong dust and powder environment
  • Cement silos
  • Grain barn and silos
  • Plastic pelletstanks
  • Fish flour powder tolvin

Advantages

  • Suitable for dust and powder application.
  • Millimeter wave RF chip, higher signal-to-noise ratio, smaller blind area
  • 5GHz working frequency bandwidth, higher resolution and precision
  • Narrowest 3°antenna beam angle, less impact from interference in the installation environment, and more convenient for installation
  • Optional intrinsically safe and explosion-proof, safe and reliable

A stable and high accuracy non contact radar level sensor for grain storage as well as radar level sensor for powder materials with universal flange and air blowing function, a robust and perfect choice for cement silo level sensor and grain bin level sensor.

Resources

Datasheet

File Name

Time

Type

Download

PWL-R803 Solids Radar Level Sensor

May 05, 2025

PDF

Technical Parameters

Model PWL-R803
Application Strong dust, solids, powder, block
Measuring Range 0.08 ~35m (For liquids)
0.3 ~60m (For solids)
0.6 ~ 120m (For solids and liquids)
Blind Zone 0.25-1.2m (According to the range)
Accuracy ±1mm for range ≤ 10m
±5mm for range 11~30m
±10mm for range >30m
Signal Output 4-20mA/RS485/HART
Power Supply 12~24VDC

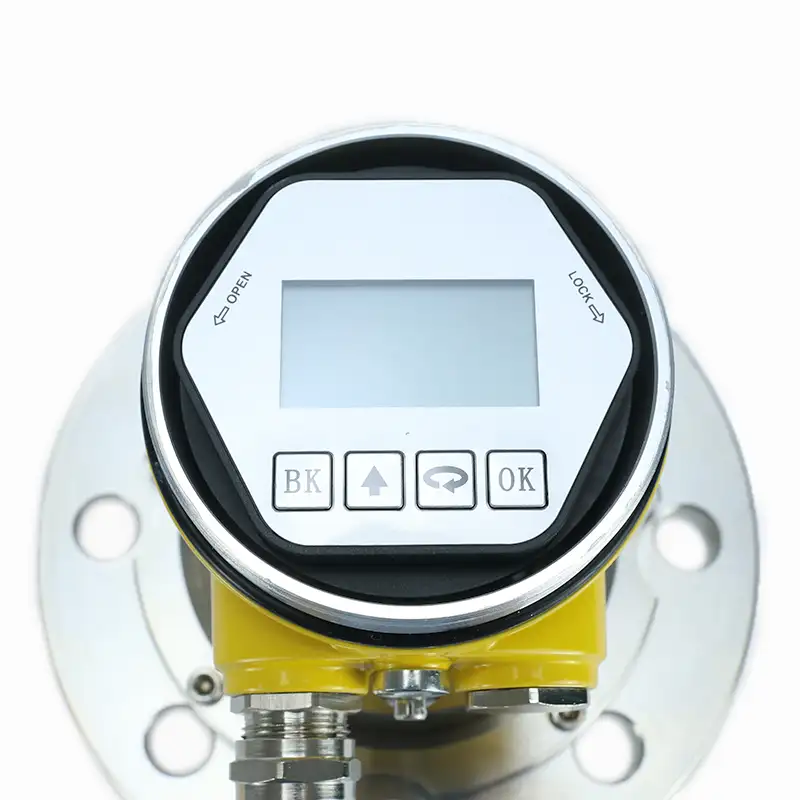

Display With
Beam Angle
Working Temp. -30~100℃
Working Pressure -0.1 ~ 0.1MPa
Antenna Type Large lens antenna
Protection Level IP67
Enclosure Aluminum alloy, stainless steel
Housing Material SUS304
Antenna Material PTFE
Installation Method Universal flange
Explosion-proof ExibIIC T6 Gb
