Capacitive Level Sensor

The high accuracy capacitive level meter adopts a fully digital capacitance measurement method and uses multi-parameter compensation technology. It can automatically adapt to various media without re-calibration. It has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and can work under harsh conditions such as high temperature, strong corrosion, severe toxicity, explosion and strong vibration. It is not affected by factors such as dielectric constant changes, temperature changes, steam interference and hanging materials. It is a great option for truck tank fuel level sensor.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

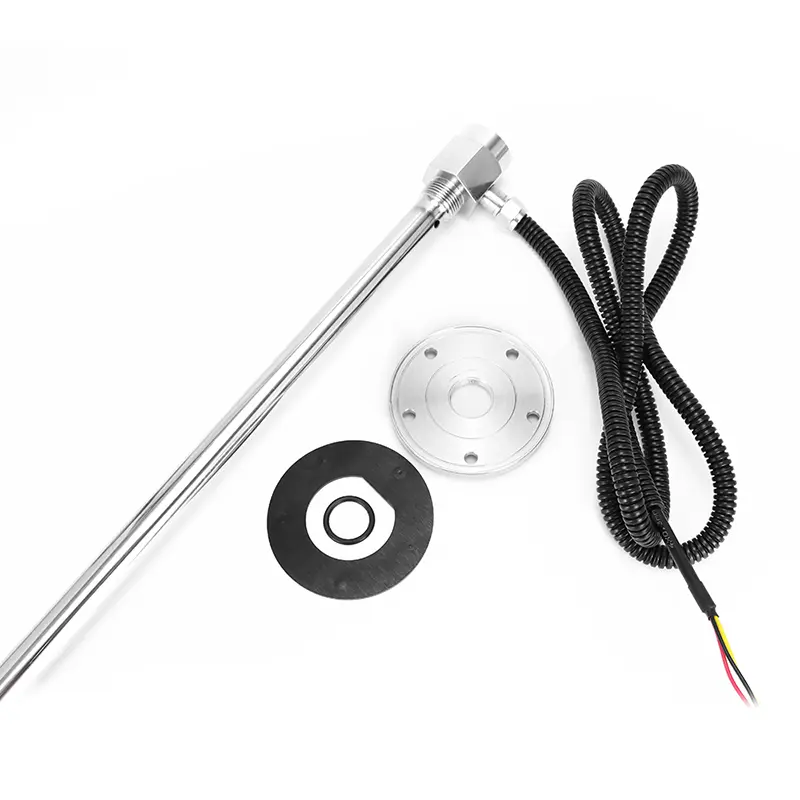

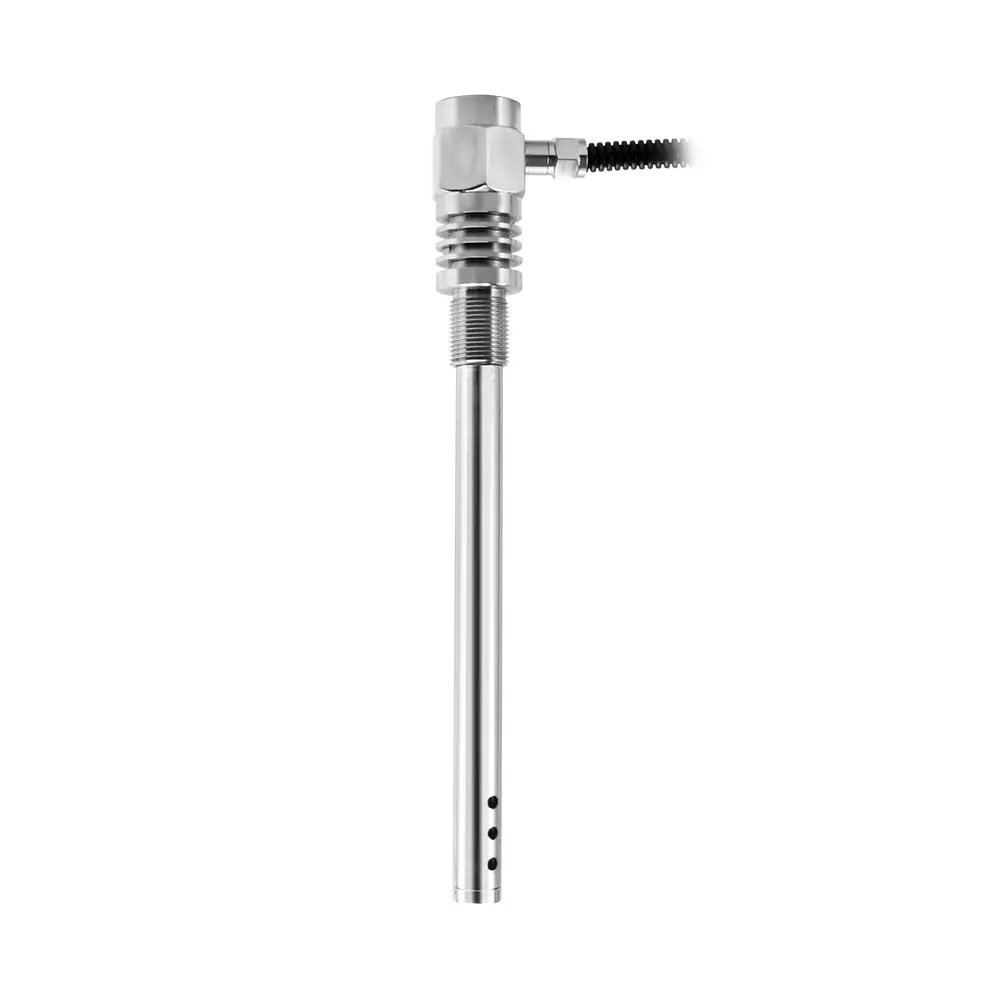

PWL-C Capacitive Level Sensor

Features

  • Support local ZERO and SPAN calibration
  • Customize max 250℃ high Temp liquid
  • IP68 protection grade
  • Algorithm can handle various extreme situations and never drift

Application:

  • Sanitation vehicles, septic tanks,reactors, sewage treatment
  • Tank trucks, oil depots
  • Liquid tanks in construction trucks
  • Water, wastewater level measurement
  • Chemical liquid tanks, pesticide tanks
  • Diesel tanks of generators in Telecom base station
  • Sealed pressure tanks and vessels

Advantages

  • Excellent in vibration environment
  • Easy to install no need any settings
  • No elastic or movable parts, impact-resistant
  • No effect from different medias, temps
  • Anti-adhesion, anti-hanging, anti-foam
  • Suitable for acid and alkaline corrosive liquids

The digital capacitive level sensor is capable for accurate and stable level measurement in vibration application as well as extreme harsh process conditions of high temperature, high pressure and corrosive. It is widely used as truck tank fuel level sensor as well as GPS tracking oil level sensor.

Resources

Datasheet

File Name

Time

Type

Download

PWL-C Capacitive Level Sensor

May 05, 2025

PDF

Technical Parameters

Model PWL-C
Pressure Type Relative (gauge)
Level Range 50-3000mm
Working Pressure -0.1MPa~0.1MPa (Typical), can customize for high pressure max 32Mpa
Accuracy ±3mm (L ≤ 300mm)
1.0%FS (300 < L ≤ 700mm)
0.5%FS (700 < L ≤ 3000mm)
0.2%FS by customization high cost
Electrical Connection Directly cable outlet
Probe Diameter Φ16mm, Φ19mm, Φ22mm, Φ25mm
Signal Output 4-20mA/0-3.3V/0-5V/0-10V/RS485/RS232
Power Supply 4.5-36VDC/12-28VDC
Pressure Connection M20*1.5, M27*2, flanged
Long-term Stability (%FS/year) ≤0.1
Temp Drift ( %FS/℃ ) ≤0.02
Probe Material SUS304 (Can customize for 316L)
Electrode Material FEP
Working Temp. 40℃~+85℃(250℃ by customized)
Storage Temp. 40℃~+85℃
Explosion Proof Exia II CT6 Ga(Optional)
IP Rating IP67
Cable Length 1000mm or by as required
