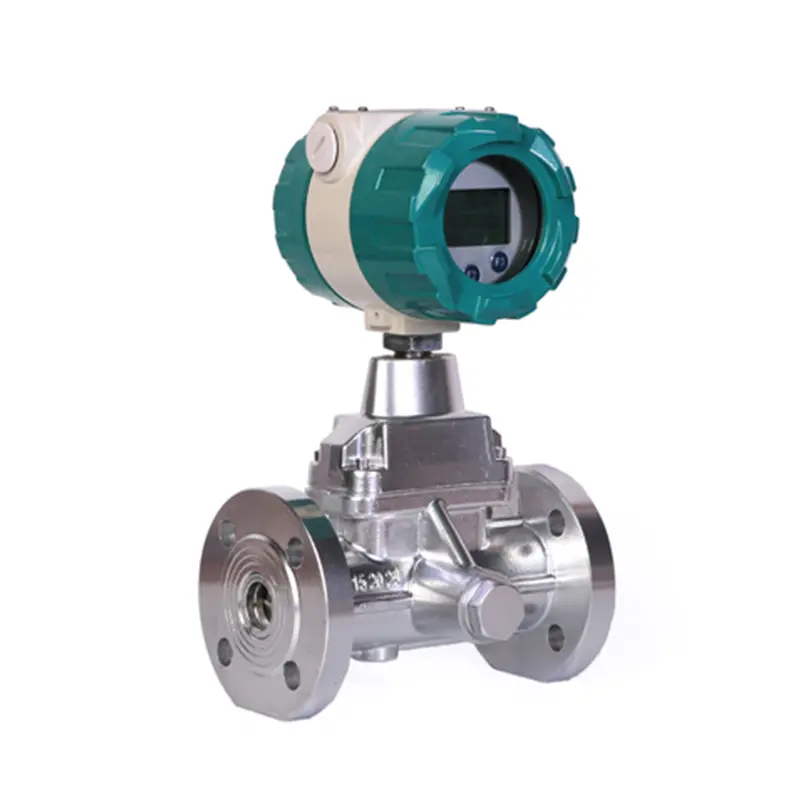

PWF-SF Swirl Flow Meter
Features
- Set intelligent flowmeter flow sensor, microprocessor, pressure and temperature sensor, adopt built-in combination, make the structure more compact, can directly measure the fluid flow, pressure and temperature, and automatic tracking compensation and real-time compression factor correction.
- Using EEPROM technology, convenient parameter Settings, which can be permanent, historical datasaved for up to one year.
- Flow meter electronic headcan rotate 360°, easy to install and use.
- Low power consumption,internal battery or external power supply available.
Application:
- Natural gas
- City coal gas
- Compressed air
- Biogas
- Ammonia
- Oxygen
- Hydrocarbons
- Other industrial inert gases
Advantages
- No mechanical moving parts, not easy to corrode, stable and reliable, long life.
- Using 16-bit single chip, high integration, small size, good performance, the whole machine function is strong.
- Multi-physical parameter alarm output, users can choose one of them.
- Maintenance-free, cleaning-free.
Intelligent precision Swirl flowmeter is a new type instrument for gas flow measurement. It integrates the functions of flow, temperature and pressure detection, and can automatically compensate the temperature, pressure and compression factors. It is an ideal instrument for gas metering in petroleum, chemical industry, electric power, metallurgy and other industries.
Technical Parameters
| Model | PWF-SF |
| Shell Material | Aluminum alloy or stainless steel |
| Accuracy | 1.5% |
| Measuring Range | 1.0-3600 m3/h |
| Diameter | DN15-DN200 |
| Output | 4-20mA / Pulse, RS485 and HART optional |
| Pressure Rating | 1.6MPa, 2.5MPa |
| Power Supply | Internal 1pc 3.6V lithium(ER26500); or external 24VDC |
| Display | LCD digital display |
| Power Consumption | External power supply: ＜2W;
Internal battery: Average 1mW, can be used for more than 2 years |
| Connection | Thread or Flange |
| Protection Level | IP65 |
| Compensation | Integrated with temperature and pressure sensor, automatically compensation |
| Working Condition | Environmental temperature: -30℃~+65℃
Relative humidity: 5%~95% Medium temperature: -20℃~+80℃ Atmospheric pressure: 86KPa～106KPa |
