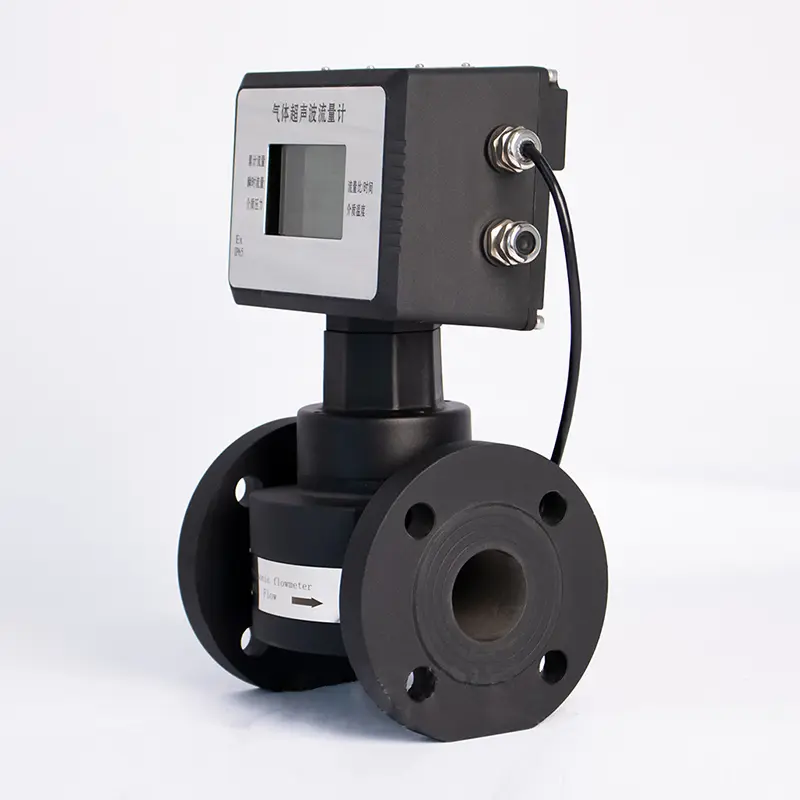

PWF-GUF Gas Ultrasonic Flow Meter
Features
- Electric field and magnetic field laminated shielding, high noise resistance.
- Zero drift automatic correction, accuracy is not affected by the environment
- Measurement accuracy 1.0%
- Dual backup lithium battery power supply
- Intelligent switching of various gas working conditions and standard conditions
- The meter head can be rotated 180° for easy reading
Advantages
- Ultra-wide range ratio: 1:40.
- Ultra-low “zero” starting flow
- High-precision temperature and pressure compensation, volume correction
- Maintenance-free, cleaning-free and long life
- Large-capacity storage, can save one year of data
Gas ultrasonic flowmeter is produced with advanced German technology. All its key components are imported with high reliability and long service life. It adopts a unique multiplexed dual-channel (DN25-DN80) and multiplexed six-channel (DN100-DN200) design, which can eliminate the influence of vortex and asymmetric flow, and the multiplexed channel adds redundant backup channels to improve the reliability of the system. It is an ideal high precision flow meter for natural gas.
Technical Parameters
| Model | PWF-GUF |
| Measuring Medium | Single-phase gas without vortex and without impurities such as oil. |
| Accuracy | 1.0% |
| Repeatability | ±0.2% |
| Meter Diameter | DN25～DN300 |
| Process Connection | Flanged |
| Range Ratio | 1:40 |
| Pressure Rating | 1.6MPa; 2.5MPa and 4.0MPa optional |
| Housing Material | Aluminum alloy or SUS304 stainless steel |
| Working Temperature | -30℃~+80℃ |
| Explosion Proof | Ex d II CT6 Gb |
| Signal Output | Pulse, 4-20mA, alarm, RS485 |
| Power Supply | External Power: 5-24VDC
Internal Power: 3.6V10AH lithium battery |
| Power Consumption | External Power: Average ≤1W
Internal Power: Average ≤1.5mW |
| Protection Class | IP65 |
