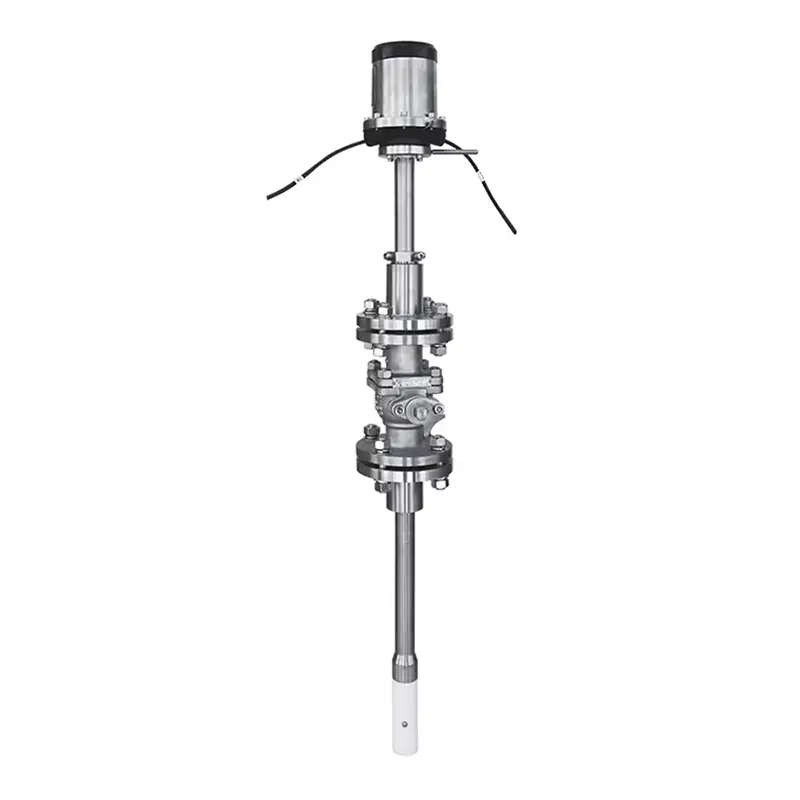

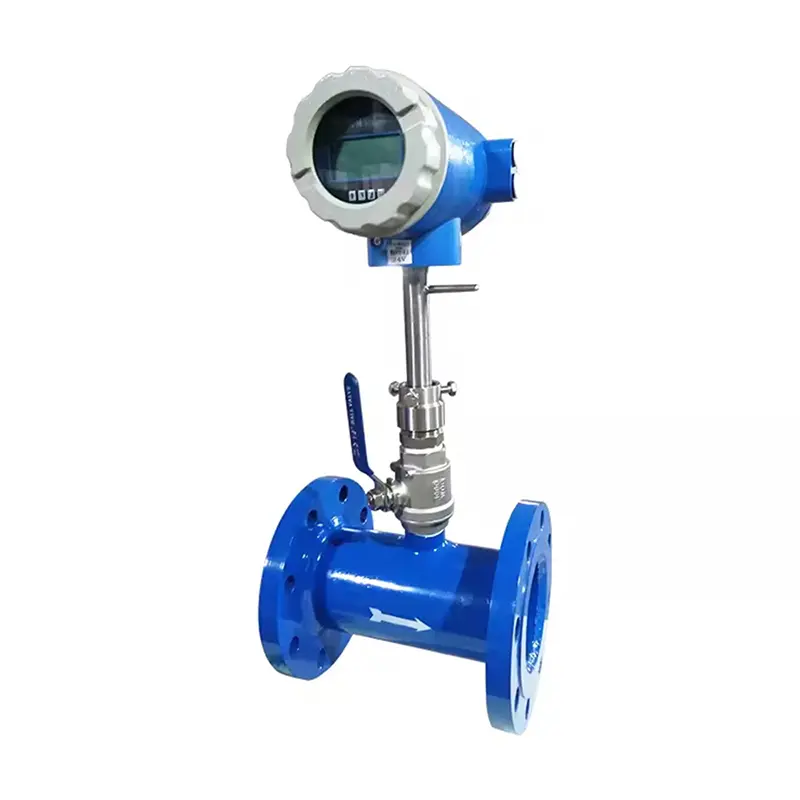

PWF-E1700 Insertion Type Electromagnetic Flow Meter
Features
- Cost is less for product, freightand installation than other magnetic flowmeters, especially large diameter pipes
- Advanced low frequency square wave excitation, no zero point drift, high disturbance resistant and reliable operation
- Wide measurement range. Full scale flow rate can be randomly set within the range from 1m/s to 10m/s.
- 5%FS accuracy
Application:
- Municipal water supply and drainage
- Sewage treatment
- Hydraulic engineering
- Tap water supply
- Chemical industry
- Environmental protection
- Paper making
- Metallurgy
Advantages
- No moving parts, simple structure and reliable operation
- Installation without cutting off the water supply under the condition of low pressure
- Transducer has no pressure loss, very low energy loss
- Small volume and light weight, save on shipping cost and it’s convenient to install
Insertion Electromagnetic Flow Meter is designed for the conductive liquids in large pipes. It retains the advantages of pipeline electromagnetic flowmeter, and overcome it’s installation difficulties and higher cost for large pipes. In particular, after adopting pressure opening and pressure installation technology, the insertion type electromagnetic flow meter can be installed without stopping water, and can also be installed on cast iron pipes and cement pipes. It is used to measure water, sewage, acid, alkali and other mediums. Suitable for measuring large pipe of DN300-DN3000mm. Check out large diameter electromagnetic flow meter DN1000 and water treatment electromagnetic flowmeter.
Technical Parameters
| Model | PWF-E1700/E1700S |
| Meter Diameter | DN100-3000mm |
| Measurable Medias | Water, seawater, sewage, wastewater etc |
| Accuracy | ±1.5%, ±2.0%, ±2.5% |
| Signal Output | 4-20mA/Pulse/Frequency/RS485/RS232/HART/Profibus |
| Power Supply | 85~250VAC/20VDC-36VDC/3.6V battery power supply (DN100-1000) |
| Display | LCD with backlight |
| Working Temp. | -25~80℃ |
| Working Pressure | 0.6-1.6Mpa |
| Protection Level | IP65/IP68 |
| Housing Material | SUS304 and 316L optional |
| Electrode Material | 316L/Titanium/Tantalum/Hastelloy/Platinum etc |
| Lining Material | ABS, PTFE, F46, PFA |
| Installation Method | Simple type, threaded ball valve type, flange ball valve type |

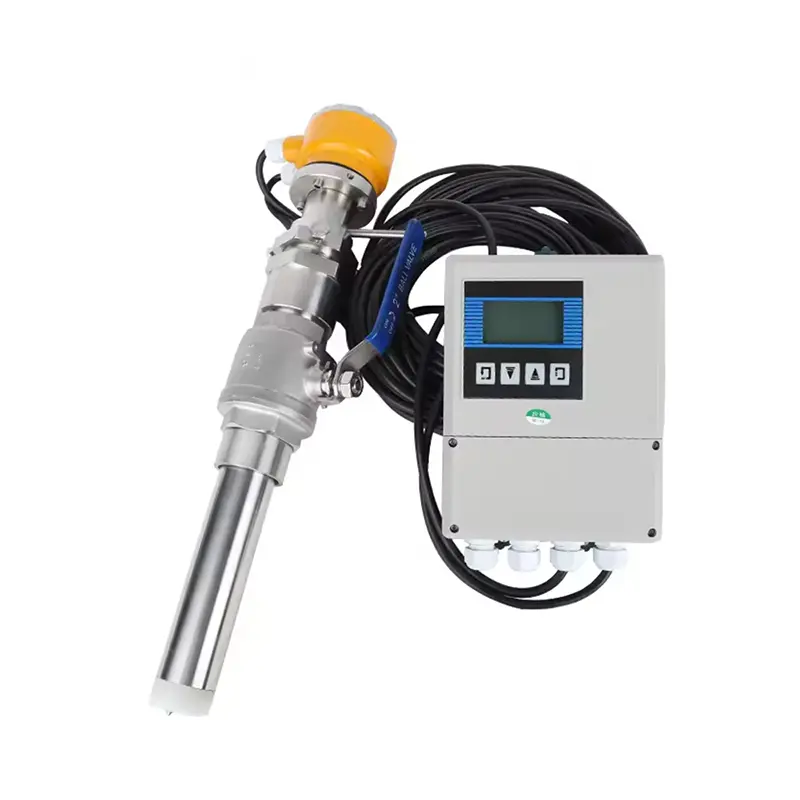

| Structure Form | Integrated type, split type |
| Cable Entry | M20*1.5, 1/2NPT |
| Explosion Proof | Ex d ia q IIC T6 Gb (optional) |
| Flow Unit | m3/h, m3/m, m3/s,L/h, L/s, gal/h, gal/m,gal/s, bbl/h, bbl/m, bbl/s |
