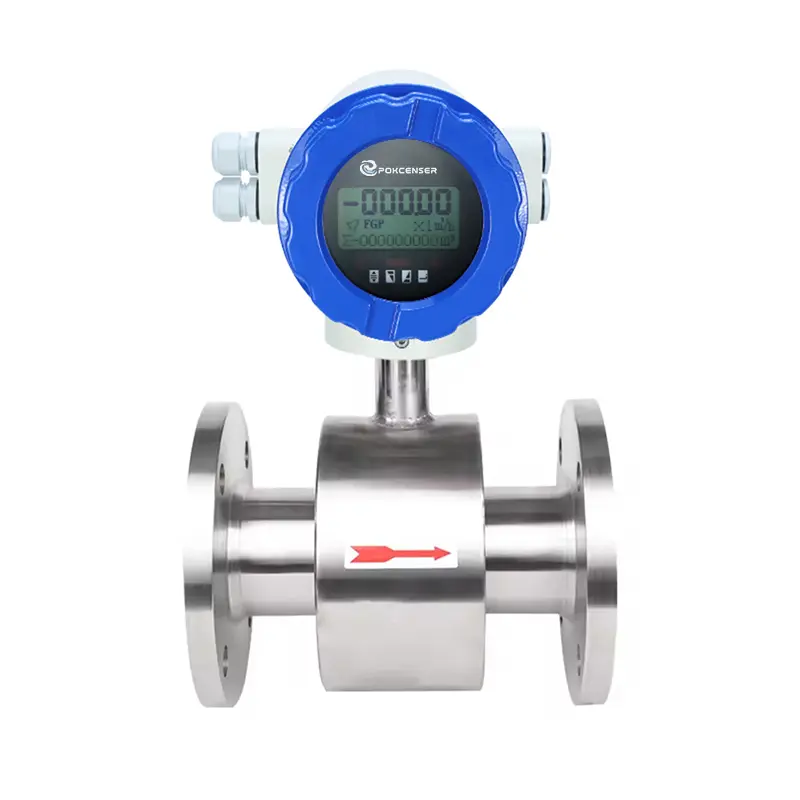

PWF-E1220 Sanitary Electromagnetic Flow Meter
Features
- High-definition LCD Backlight Display.
- Multi-functional Intelligent Converter
- Customized quantitative control
- Various outputs: 4-20mA, pulse, frequency, RS485, HART, PROFIBUS.
- Process Connection: Clamps, flanged, SMS
- 0.5%FS and 0.3%FS high measurement accuracy.
Application:
- Mineral water
- Brewing
- Fruit juice
- Dairy
- Jam
- Soy sauce
- Other food manufacturing process
Advantages
- Rapid response and high stability, strong anti-interference ability.
- No additional pressure drop.
- Using the quick connection scheme, the electromagnetic flowmeter is easy to disassemble, maintain and clean
- Compact and remote version are available
- Housing is made of stainless steel and has a long service life.
The Sanitary Electromagnetic Flow Meter adopts a new hygienic lining material and process, which meets the hygiene requirements of the food industry. Equipped with a stainless steel housing and SUS304 or SS316L stainless steel clamps or flanges connection to enable quick disassembly and cleaning. Tri-clamp sanitary magmeter for a wide range of food, beverage and pharmaceutical applications. According to its application, the types of electromagnetic flowmeter have Magnetic Water Flow Meter, Magnetic Sanitary Flow Meter, Magnetic Stainless Steel Flow Meter, Magnetic Battery Operated Flow Meter…
Technical Parameters
| Model | PWF-E1220: Sanitary Integrated Type Electromagnetic Flow Meter
PWF-E1220S: Sanitary Segregate Type Electromagnetic Flow Meter |
| Meter Diameter | DN6-DN200mm |
| Measurable Medias | Food and wine industry |
| Accuracy | ±0.5%FS(Typical), ±0.3%FS by customized |
| Signal Output | 4-20mA/Pulse/Frequency/RS485/RS232/HART/Relay/GPRS/Profibus |
| Power Supply | 24VDC/12VDC/85~265VAC/Battery |
| Display | LCD/OLED |
| Working Temp. | -25℃~150℃ |
| Working Pressure | 0.6MPa-25Mpa |
| Protection Level | IP65/IP67/IP68 |
| Housing Material | SUS304 and 316L optional |
| Electrode Material | 316L/Titanium/Tantalum/Hastelloy/Platinum etc |
| Lining Material | PTFE, F46, PFA |
| Installation Method | Flanged, Clamps, SMS |
| Grounding Electrode | With |
| Grounding Rings | Optional |
| Cable Length | 10 meters for segregate type |
