Magnetic Flow Meter

Pokcenser electromagnetic flow meter provides precise measurements of conductive liquids which electricity conductivity is >5us, such as water, acid, alkaline, slurry, pulp and others. Pokcenser magnetic flow meters are available in different versions in terms of body, electrode, lining materials, pipe connections and applications. The typical type includes pulse, analog, frequency and RS485 Modbus signals. Battery powered electromagnetic flowmeter and solar powered electromagnetic flowmeter remote location is also available. When you look for a water flow meter, chemical flow meter, corrosive liquid flow meter, our magnetic flow meters are the best choice!

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

PWF-E1200S Split Type Electromagnetic Flow Meter

Features

  • LCD converter with backlight can be easily displayed and read in the sun or in a dark room.
  • Various outputs: 4-20mA, pulse, frequency, RS485, HART, PROFIBUS.
  • Converter has self-diagnosis alarm output, no-load detection alarm output, flow upper and lower limit alarm, quantitative control.
  • A variety of liners, electrodes and converter are available to satisfy different flow characteristic.
  • Applicable for mud, coal slurry, ore pulp, paper pulp and paste liquid flow measurement.

Application:

  • Water treatment facilities
  • Brewery
  • Milk processing plants
  • Chemical plants
  • Slurry processing stations
  • Refineries

Advantages

  • Water treatment facilities
  • Brewery
  • Milk processing plants
  • Chemical plants
  • Slurry processing stations
  • Refineries

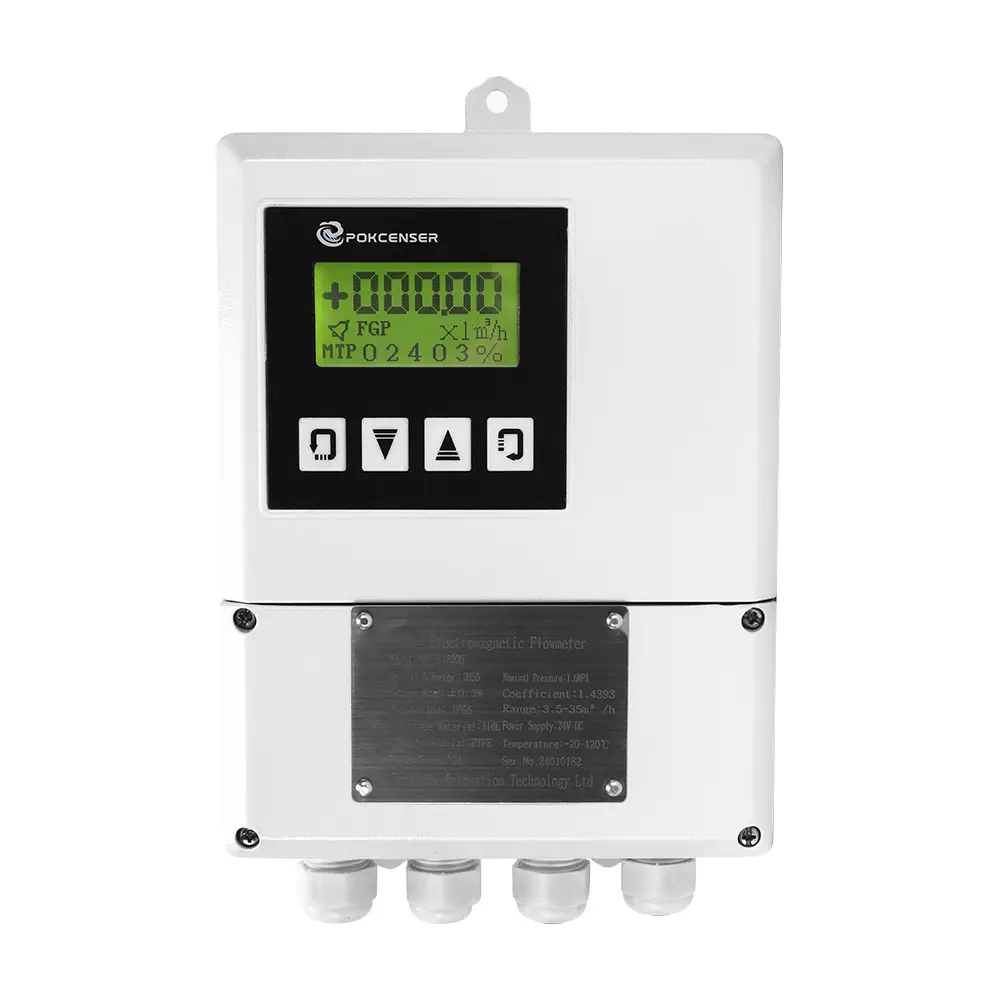

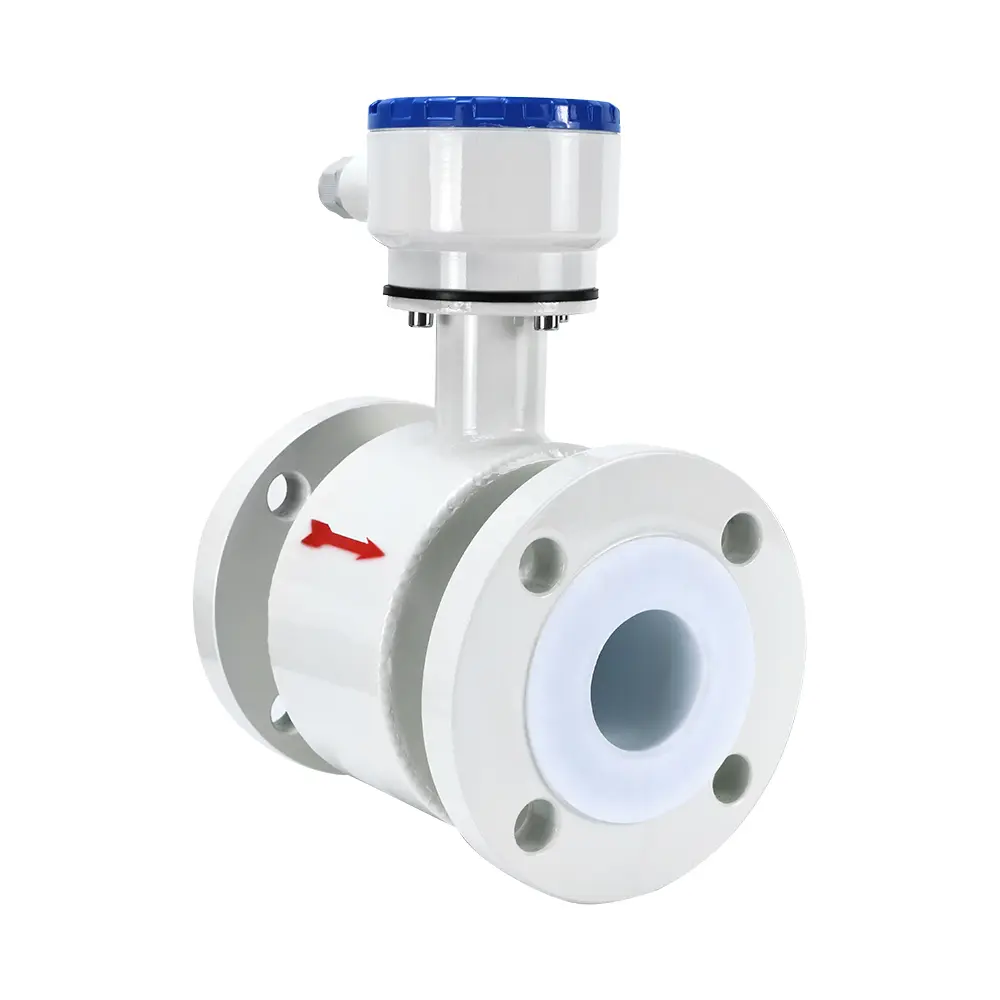

The remote mounted electromagnetic flow meter display also called the split electromagnetic flowmeter consists of two parts: the sensor and the converter. Split type magnetic flow meter can be used to measure the flow of variety conductive liquids, except general water, also can measure strong corrosive liquids, high-viscosity liquids, liquids with high suspended solids content. It has the advantages of simple structure, no rotary parts, so there is no friction, long working life, high precision measurement, reliable performance.

Resources

Datasheet

File Name

Time

Type

Download

PWF-E1200S Split Type Electromagnetic Flow Meter

May 05, 2025

PDF

Technical Parameters

Model PWF-E1200S: Split Type Electromagnetic Flow Meter
Meter Diameter DN6-DN2000mm
Measurable Medias Water, seawater, milk, beer, pulp, acid and alkali liquids, etc
Accuracy ±0.5%FS(Typical), ±0.3%FS by customized
Signal Output 4-20mA/Pulse/Frequency/RS485/RS232/HART/Relay/GPRS/Profibus
Power Supply 24VDC/12VDC/85~265VAC/Battery
Display LCD/OLED
Working Temp. -25℃~150℃
Working Pressure 0.6MPa-25Mpa
Protection Level IP65/IP67/IP68
Housing Material Carbon Steel, SUS304 and 316L optional
Electrode Material 316L/Titanium/Tantalum/Hastelloy/Platinum etc
Lining Material Polychloroprene rubber/Polyurethane rubber/Teflon/F46/PFA/Ceramic
Installation Method Threaded/Flanged/Clamps/Insertion type
Grounding Electrode With
Grounding Rings Optional
Explosion Proof Ex d ia q IIC T6 Gb (optional)
Cable Length 10 meters for segregate type

Related Products

Need Help Choosing the Right Product?

Let our Sales Engineers identify the right solution for your application.

Please complete form below to request a quote for Magnetic Flow Meter.

Model PWF-E1200S: Split Type Electromagnetic Flow Meter
Meter Diameter DN6-DN2000mm
Measurable Medias Water, seawater, milk, beer, pulp, acid and alkali liquids, etc
Accuracy ±0.5%FS(Typical), ±0.3%FS by customized
Signal Output 4-20mA/Pulse/Frequency/RS485/RS232/HART/Relay/GPRS/Profibus
Power Supply 24VDC/12VDC/85~265VAC/Battery
Display LCD/OLED
Working Temp. -25℃~150℃
Working Pressure 0.6MPa-25Mpa
Protection Level IP65/IP67/IP68
Housing Material Carbon Steel, SUS304 and 316L optional
Electrode Material 316L/Titanium/Tantalum/Hastelloy/Platinum etc
Lining Material Polychloroprene rubber/Polyurethane rubber/Teflon/F46/PFA/Ceramic
Installation Method Threaded/Flanged/Clamps/Insertion type
Grounding Electrode With
Grounding Rings Optional
Explosion Proof Ex d ia q IIC T6 Gb (optional)
Cable Length 10 meters for segregate type
