Magnetic Flow Meter
Pokcenser electromagnetic flow meter provides precise measurements of conductive liquids which electricity conductivity is >5us, such as water, acid, alkaline, slurry, pulp and others. Pokcenser magnetic flow meters are available in different versions in terms of body, electrode, lining materials, pipe connections and applications. The typical type includes pulse, analog, frequency and RS485 Modbus signals. Battery powered electromagnetic flowmeter and solar powered electromagnetic flowmeter remote location is also available. When you look for a water flow meter, chemical flow meter, corrosive liquid flow meter, our magnetic flow meters are the best choice!
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

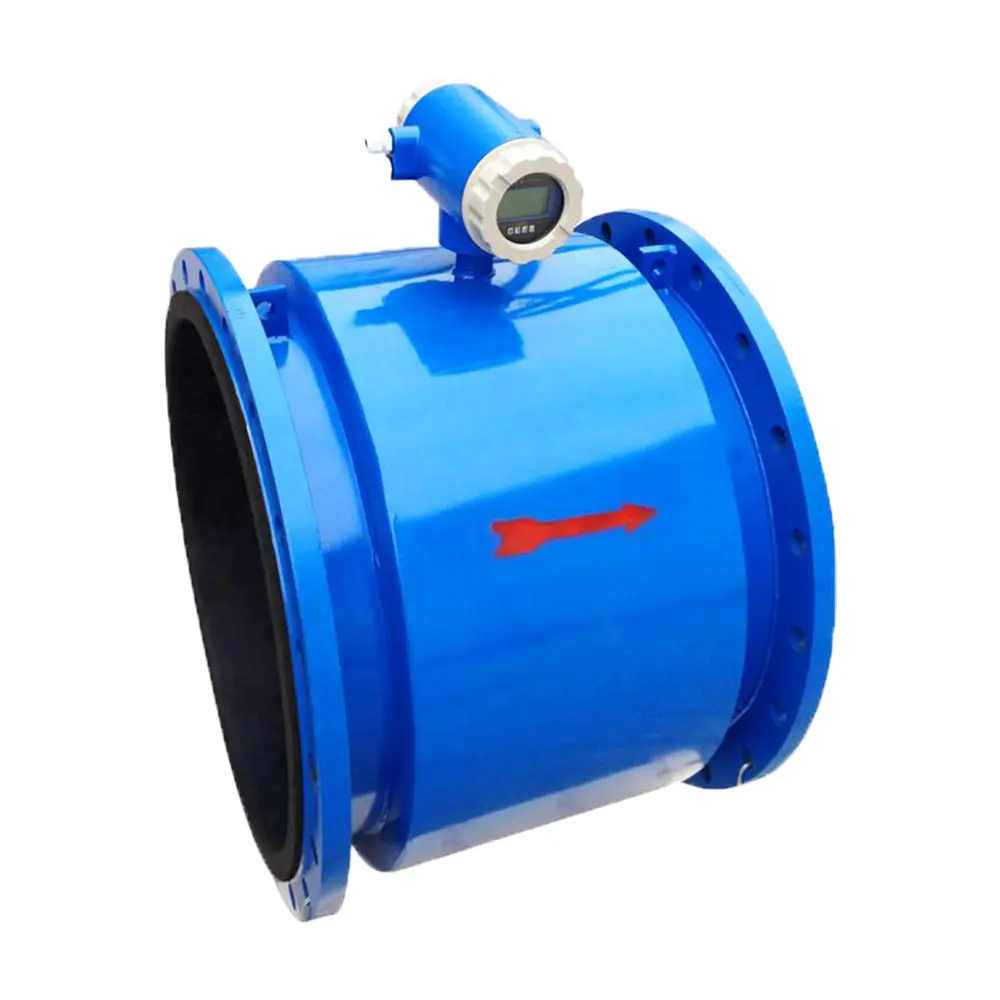

PWF-E1200 Electromagnetic Flow Meter
Features
- LCD converter with backlight can be easily displayed and read in the sun or in a dark room.
- Various outputs: 4-20mA, pulse, frequency, RS485, HART, PROFIBUS.
- Converter has self-diagnosis alarm output, no-load detection alarm output, flow upper and lower limit alarm, quantitative control.
- A variety of liners, electrodes and converter are available to satisfy different flow characteristic.
- Applicable for mud, coal slurry, ore pulp, paper pulp and paste liquid flow measurement.
Application:
- Water treatment facilities
- Brewery
- Milk processing plants
- Chemical plants
- Slurry processing stations
- Refineries
Advantages
- Compact and remote version are available
- No obstacles in the measuring pipe, no pressure-loss, low requirement for straight pipe section.
- No Moving parts, maintenance free.
- Explosion-proof instruments can be used in hazardous areas.
- IP65 water proof
Electromagnetic flow meters measure liquids and slurry flow rates in pipelines with high accuracy and repeatability. Magmeters have no moving parts with low-pressure drop, capable for bi directional electromagnetic flow meter dual flow and quantitative control liquid water flow meter functions. They are one of the most chosen flow meter because almost for all applications of conductive liquids, e.g. water, wastewater, acid, alkaline, chemicals, slurry, pulp and others. Robust and cost-effective! Explore our chemical resistant electromagnetic flowmeter PTFE lined or agricultural electromagnetic flowmeter irrigation use!
Technical Parameters
Model | PWF-E1200: Integrated Type Electromagnetic Flow Meter |
Meter Diameter | DN6-DN2000mm |
Measurable Medias | Water, seawater, milk, beer, pulp, acid and alkali liquids, etc |
Accuracy | ±0.5%FS(Typical), ±0.3%FS by customized |
Signal Output | 4-20mA/Pulse/Frequency/RS485/RS232/HART/Relay/GPRS/Profibus |
Power Supply | 24VDC/12VDC/85~265VAC/Battery |
Display | LCD/OLED |
Working Temp. | -25℃~150℃ |
Working Pressure | 0.6MPa-25Mpa |
Protection Level | IP65/IP67/IP68 |
Housing Material | Carbon Steel, SUS304 and 316L optional |
Electrode Material | 316L/Titanium/Tantalum/Hastelloy/Platinum etc |

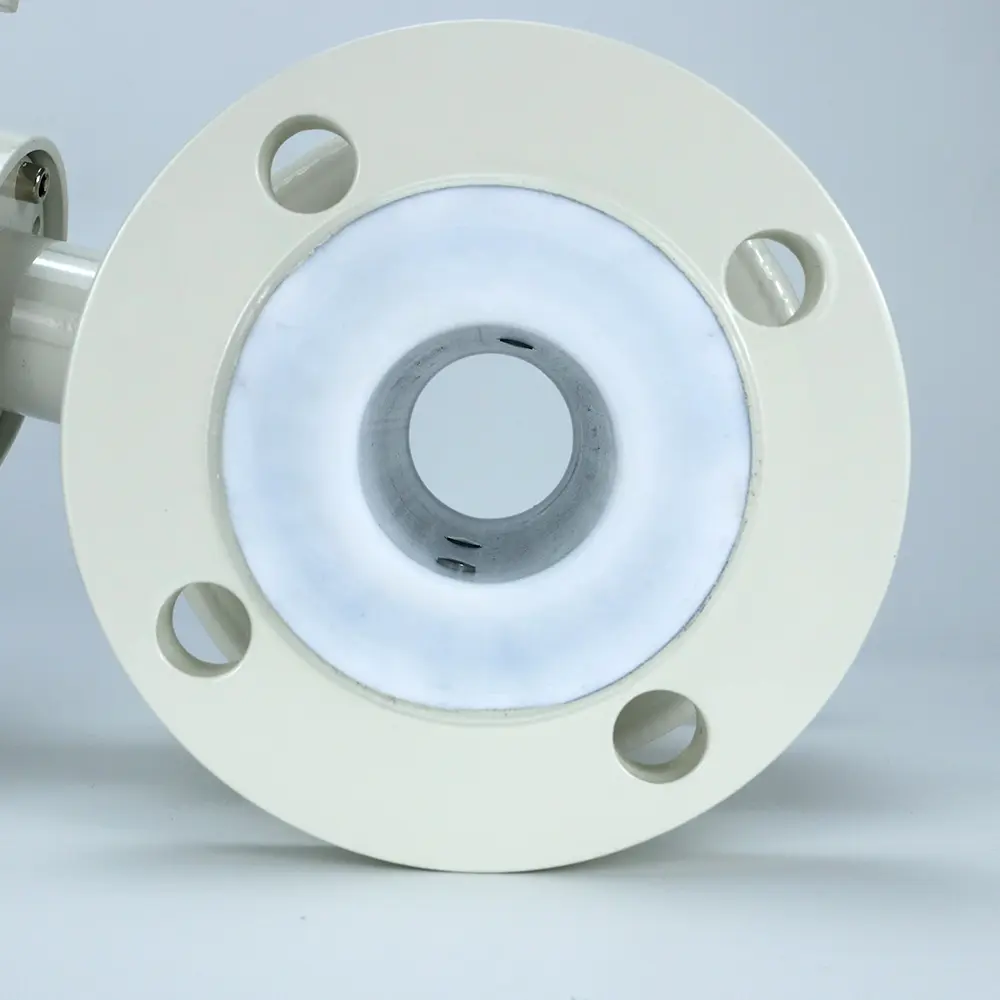

Lining Material | Polychloroprene rubber/Polyurethane rubber/Teflon/F46/PFA/Ceramic |
Installation Method | Threaded/Flanged/Clamps/Insertion type |
Grounding Electrode | With |
Grounding Rings | Optional |
Explosion Proof | Ex d ia q IIC T6 Gb (optional) |
Cable Length | 10 meters for segregate type |
