EC Sensor and Meter
An electrical conductivity meter (EC meter) measures the electrical conductivity in a solution. It has multiple applications in research and engineering, with common usage in hydroponics, aquaculture, aquaponics, and freshwater systems to monitor the amount of nutrients, salts or impurities in the water. It integrates with conductivity, TDS and salinity measurement for cost-effective water quality meter. Find out Pokcenser ec meter with multiple ranges.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

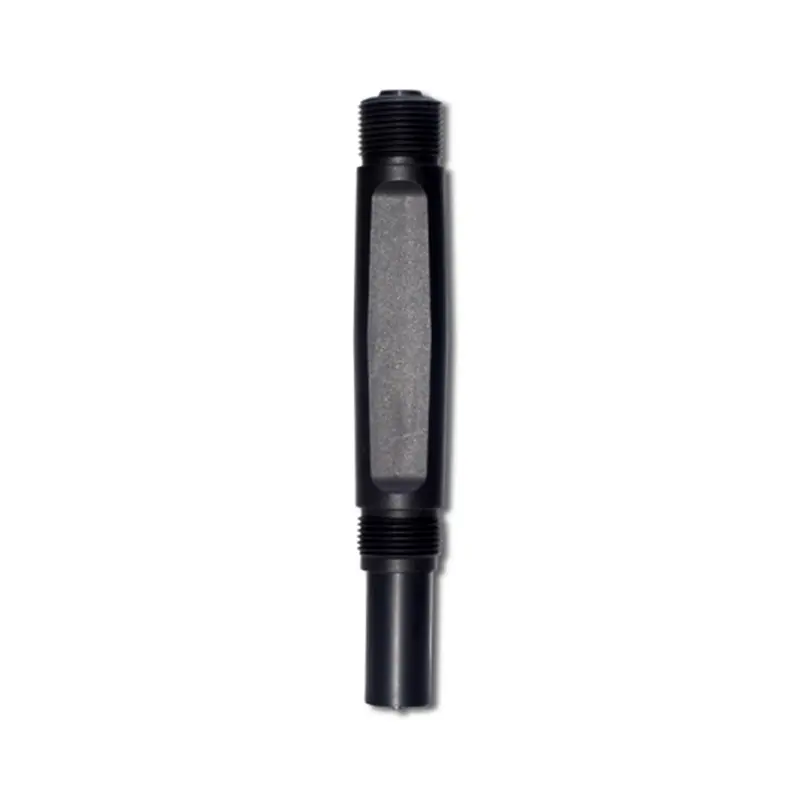

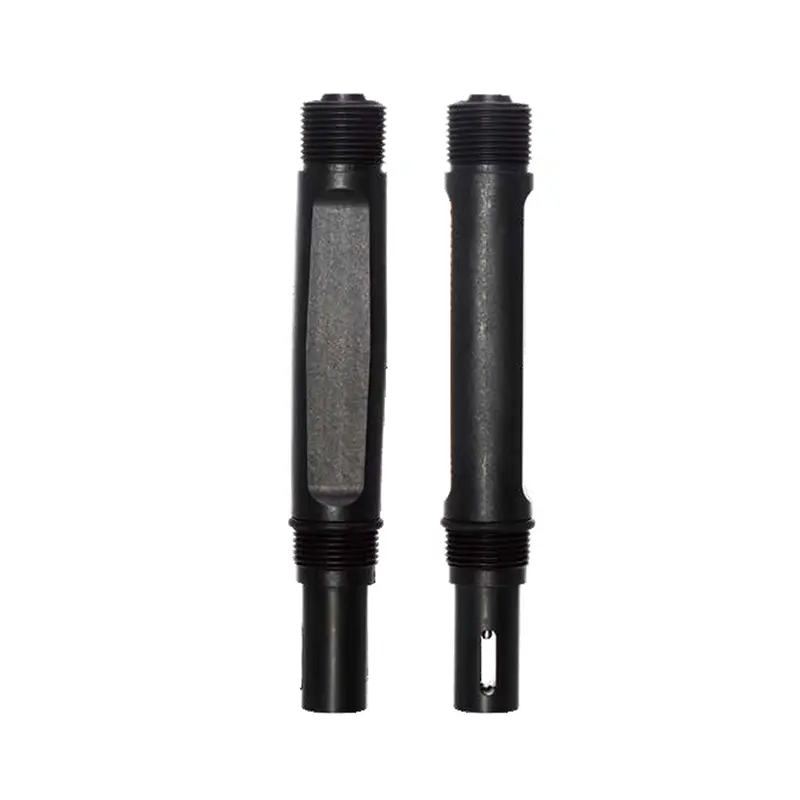

PCS3740PCD Digital Conductivity TDS Salinity Sensor
Features
- 2 or 4 electrodes measurement design, anti-interference of ion cloud.
- 316L stainless steel/graphite wetted part has strong pollution resistance.
- Measuring Range: Conductivity: 0-30ms/cm; 0-500ms/cm, TDS: 0-15g/L; 0-250g/L, Salinity: 0-18ppt; 0-700ppt
- With temperature measurement and temperature compensation
- Simple installation: Submerged or NPT3/4 thread connection
Application:
- Aquaculture
- Purified water
- Drinking water
- Surface water
- Various water supplies
- Industrial wastewater treatment
Advantages
- High accuracy and linearity, the wire impedance does not affect the test accuracy.
- The electrode coefficient is highly consistent.
- Digital sensor, strong anti-interference ability, high stability, long transmission distance.
The conductivity sensor with modbus protocol is a multi parameters measurement water quality sensor, for continuous monitoring and control of conductivity / TDS / salinity and temperature values of aqueous solutions. The digital ec meter with probe has IP68 waterproof.
Technical Parameters
| Measuring Range | Conductivity: 0-500ms/cm |
| TDS: 0-250g/L | |
| Salinity: 0-700ppt | |
| Accuracy | ±1%F.S |
| Signal Output | RS485 MODBUS RTU |
| Power Supply | 9~36VDC |
| Electrode Material | Graphite |
| Body Material | PP + ABS |
| Waterproof Class | IP68 |
| Pressure Range | ≤0.6Mpa |
| Temperature Compensation | NTC10K |
| Temperature Range | 0-60℃ |
| Calibration | Sample calibration, standard solution calibration |
| Connection Method | 4-core cable |
| Cable Length | 10m cable as standard (max 100m) |
| Installation Thread | NPT3/4”/Submerged |
| Installation requirement | Distance >5cm from sensor to the bottom of liquid |
| Scope of application | General application, drinking water, industrial water,
river and lake water quality |
