pH Sensor and Meter
ph meter with temperature compensation is an instrument used to measure acidity or alkalinity of a solution – also know as pH. pH is the unit of measure that describes the degree of acidity or alkalinity. It is measured on a scale of 0 to 14. Ph Sensor and Meter as a critical tool in water quality monitoring, widely used in drinking water, wastewater treatment and in the fields including mining and smelting, papermaking, paper pulp, textiles, fisheries, petrochemical industry, process of semiconductor electronic industry, and downstream engineering of biotechnology.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

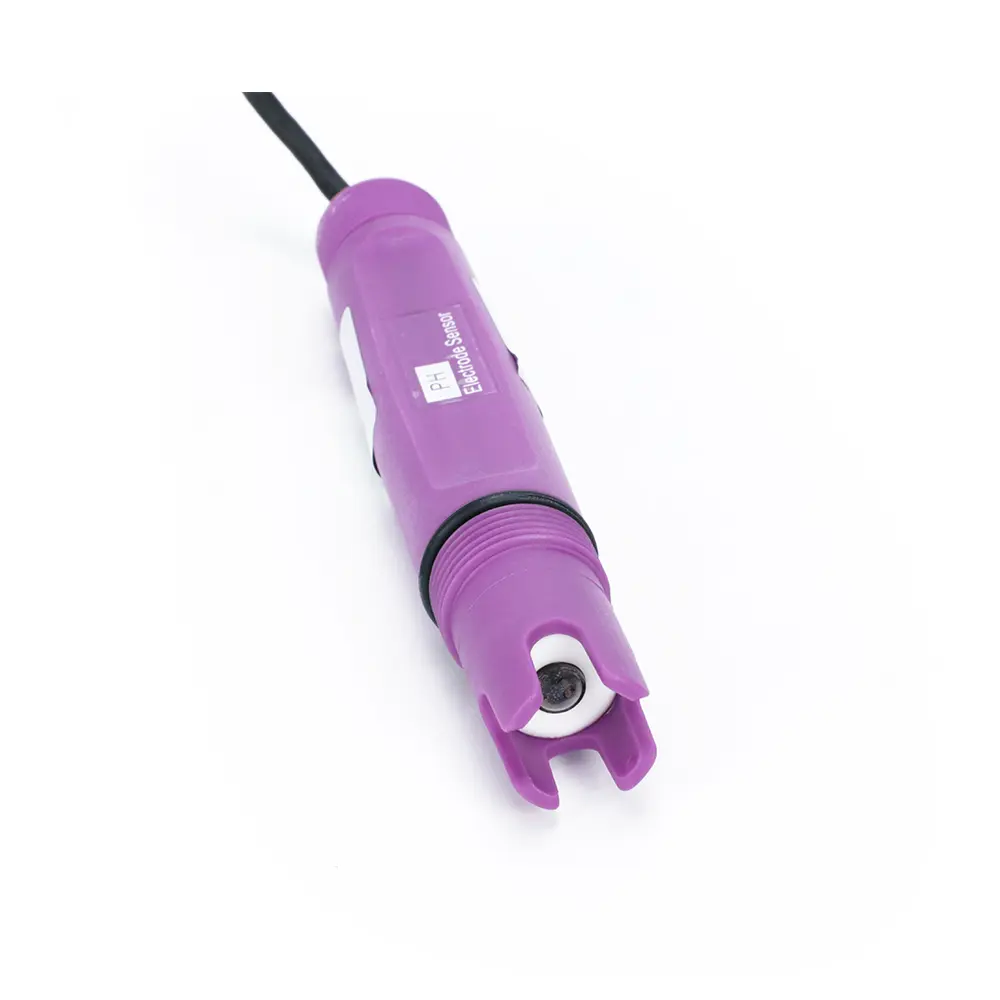

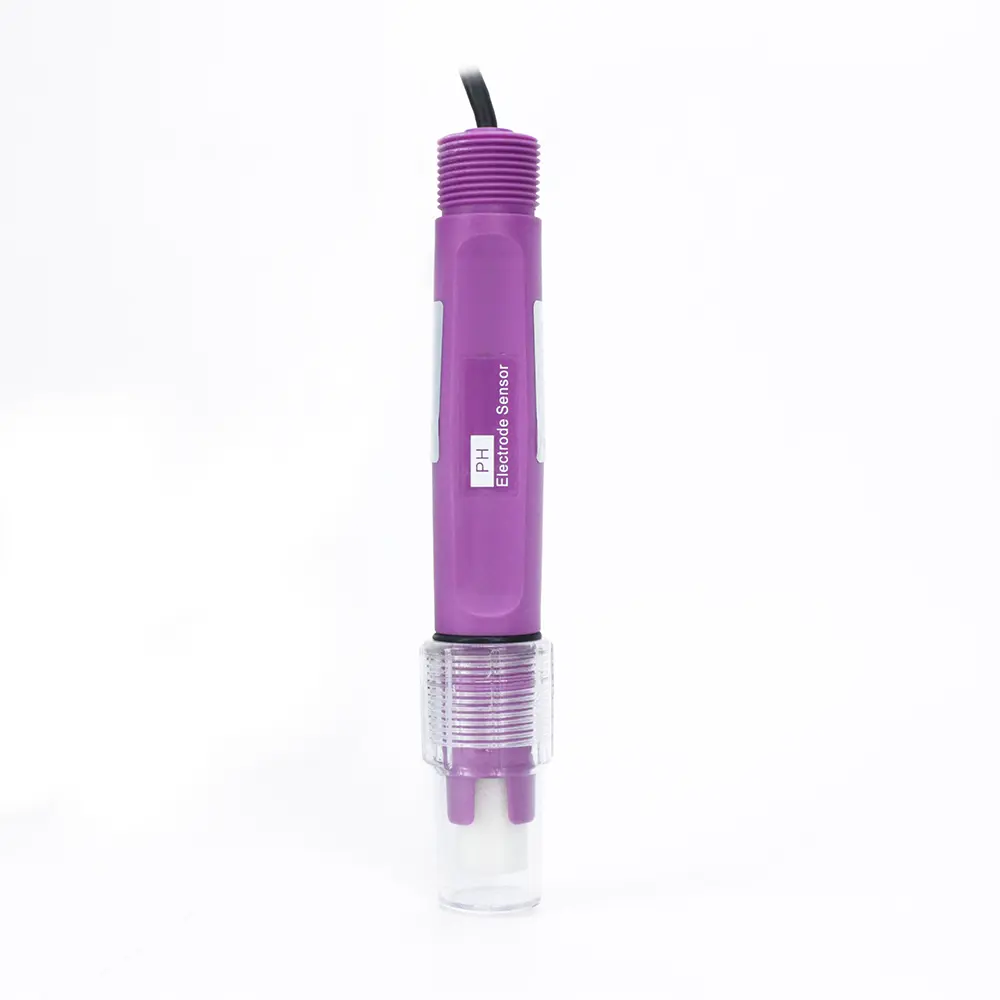

PCS1755C Flat pH Electrode
Features
- PP Body material
- Measuring range 0-14pH
- Wetted material PTFE
- Temperature compensation: NTC10K/NTC2.2K/PT100/PT1000
Application:
- Strong acids
- Strong alkaline
- Chemical manufacturing processes
- Other corrosive liquids
Advantages
- High accuracy
- Fast response
- Corrosive resistance
Flat pH electrode consists of a plastic-body, reliable flat pH electrode ball with integrated temperature sensors, to be used for corrosive applications like strong acid, strong alkaline, and chemical manufacturing process.
Technical Parameters
Parameter | Specifications |
Measurement range | 0-14pH |
Measurement accuracy | ±0.05pH |
pH zero point | 7.00±0.25 |
Shell material | PP |
Wetted material | PTFE |
Pressure range | 0-0.6Mpa |
Temperature compensation | NTC10K/NTC2.2K/PT100/PT1000 |
Temperature range | 0-80℃ |
Reference system | Ag/AgCL |
Calibration | Sample calibration, standard solution calibration |
Membrane resistance | <800MΩ |
Cable length | 10m cable as standard (Customizable) |
Installation thread | NPT3/4” |
Electrode ball structure | Flat type |
Scope of application | Strong acids, strong alkaline, chemical manufacturing processes |
